7" Suspension System - Stage 4 Kit

2017-2024 Ford F-250 Super Duty 4WD DIESEL
$9,263.15 $9,868.10

Starting at $578/mo or 0% APR with . See if you qualify

Out of Stock

Estimated Delivery in 3-7 business days

K67114
K67114
Icon 7" Suspension System Stage 4 Kit for 2017-2024 Ford F250 Super Duty 4WD DIESEL
Expert's Guide to 17-24 F-250 Super Duty Shocks
Icon

7" Suspension System - Stage 4 Kit

2017-2024 Ford F-250 Super Duty 4WD DIESEL
$9,263.15 $9,868.10

Starting at $578/mo or 0% APR with . See if you qualify

Out of Stock

Estimated Delivery in 3-7 business days

CHECK IF THIS FITS YOUR VEHICLE
Select Your Vehicle
Authorized dealer
Free shipping within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!
Chat now Request a call back
Part Numbers & Details
Specifications
Part NumberLift/LoweredPositionItemQuantity
K671147.0" LiftFront and Rear7" Suspension System - Stage 41

Overview

This ICON Vehicle Dynamics 7" suspension system is a great way to lift your 4WD 2017-UP Ford F250/350 Super Duty while drastically improving ride quality and performance. This suspension system is perfect for on-road and off-road use including towing, job site duty, and hardcore off-road adventure. ICON's 7" Stage 4 System is comprised of dual rate coil springs, progressive leaf springs, 4-Link kit, adjustable track bar, dual opposing steering stabilizer kit, ICON 2.5 Series piggyback reservoir front and rear shocks, plus all of the necessary hardware for installation.

The Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty 4-Link kit, which further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation. This "freeing up" of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured knowing that you have the best suspension solution on the market.

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • APPLICATION NOTE #31: '08 - CURRENT SUPERDUTY MODELS WITH GAS ENGINES MAY NEED EXHAUST MODIFIED TO CLEAR FRONT DRIVESHAFT
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #94: ICON PART #65000 DOES NOT FIT 2015-UP DUAL REAR WHEEL
  • APPLICATION NOTE #118: OEM STABILIZER DOES NOT WORK WITH REQUIRED DRAG LINK FLIP ON THIS KIT
  • Ships in multiple boxes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 5" Backspace / 6mm Offset
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • TECH NOTE: 2020 Super Duty models have a lower ride height from the factory than 2017-2019 trucks. This results in an increase of approximately .75" of additional lift height over ICON'dvertised numbers.
  • APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
  • APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION

Features & Benefits

  • Fits 2017-UP F250 / F350 4WD applications
  • Lifetime guarantee against coil spring breakage or sag
  • Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
  • Approximately 50% increased front wheel travel over stock
  • ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
  • Progressive leaf springs improve ride quality without reducing towing capacity
  • ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
  • ICON shocks feature vehicle specific tune for superior performance and ride quality
  • Shocks are fully rebuildable and revalvable
  • Corrosion resistant CAD plated shock body with 7/8 shaft (2.5 Series shocks)
  • FK Rod End bearings provide extended longevity and minimal deflection

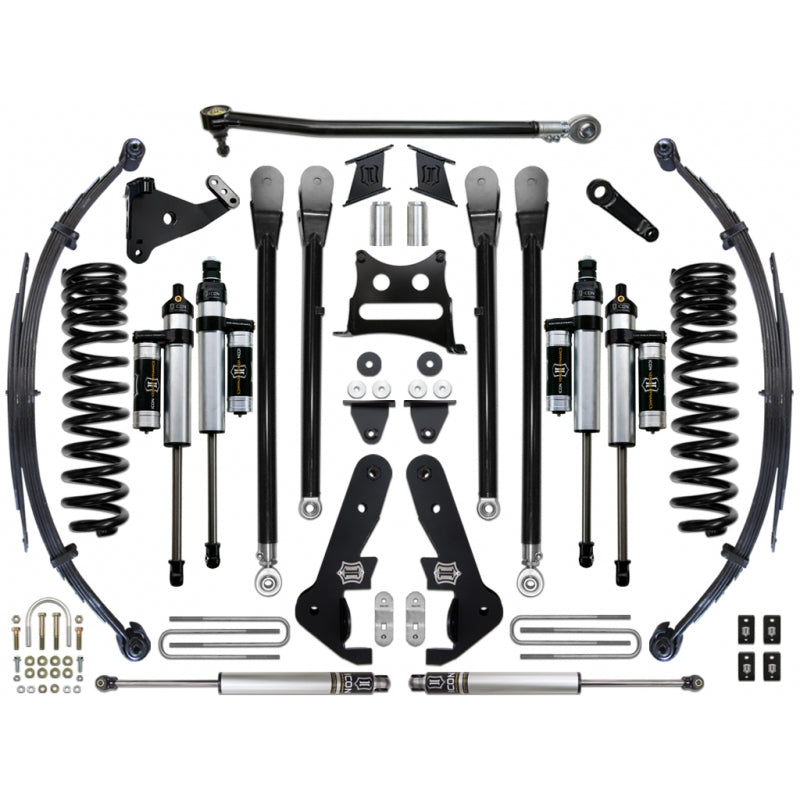

System Components:

  • 67003 (QTY: 1) | 11-UP FSD REAR 15" U-BOLT KIT
  • 36511 (QTY: 2) | 99-UP FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR
  • 67031 (QTY: 1) | 11-UP FSD REAR 7" BRAKE BRACKET KIT
  • 37701P (QTY: 1) | 99-UP FSD 3-6" REAR 2.5 VS PB PAIR
  • 67015 (QTY: 1) | 05-UP FSD FRONT 7" DUAL RATE SPRING KIT
  • 65000 (QTY: 1) | 05-UP FSD DUAL STABILIZER KIT
  • 65501 (QTY: 1) | 11-UP FSD U-BOLT PLATE KIT
  • 67035 (QTY: 1) | 17-UP FSD FRONT 7" BOX KIT
  • 64038 (QTY: 1) | 17-UP FSD ADJ TRACK BAR KIT
  • 67720P (QTY: 1) | 05-UP FSD 4WD 7" FRONT 2.5 VS PB PAIR
  • 164504 (QTY: 1) | 17-UP FSD 4 LINK FRAME BRACKET KIT
  • 164501 (QTY: 1) | 05-UP FSD FRONT UPPER LINKS
  • 164502 (QTY: 1) | 05-UP FSD FRONT LOWER LINKS
  • 168506 (QTY: 2) | 17-UP FSD 5" REAR LEAF SPRING PACK
  • 65505H (QTY: 1) | 17-UP 5" LEAF SPRING HARDWARE KIT

Installation Instructions & Docs

Compatibility List
YearMakeModelDrivePositionLift
2024FordF-250 Super Duty4WD7.0"
2023FordF-250 Super Duty4WD7.0"
2022FordF-250 Super Duty4WD7.0"
2021FordF-250 Super Duty4WD7.0"
2020FordF-250 Super Duty4WD7.0"
2019FordF-250 Super Duty4WD7.0"
2018FordF-250 Super Duty4WD7.0"
2017FordF-250 Super Duty4WD7.0"

Product Details

Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!
