7" Suspension System - Stage 1 Kit
Estimated Delivery in 3-7 business days
7" Suspension System - Stage 1 Kit
Estimated Delivery in 3-7 business days
Part Number | Lift/Lowered | Position | Item | Quantity |
---|---|---|---|---|
K67100 | 7.0" Lift | Front and Rear | 7" Suspension System - Stage 1 | 1 |
Overview
ICON's 7" Suspension System for the 2005-2007 Ford Super Duty offers unparalleled performance and ride quality while giving the vehicle clearance for 38" Tall tires. This system comes complete with ICON 2.0 Aluminum Series Shocks, Dual Rate Coil Springs, Drop Pitman Arm, Pan Rod Bracket, Brake Line Brackets, Radius Arm Drop Down Brackets, ICON'abricated 6" Blocks and U-bolts. All of these components (excluding shocks) are covered by ICON's limited Lifetime Warranty.
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Ships in multiple boxes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 5" Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
- APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
- APPLICATION NOTE #28: PINCH WELD ON 05-10 SUPERDUTY RADIUS ARMS MAY COME IN CONTACT WITH RADIUS ARM DROP BRACKET HARDWARE
- APPLICATION NOTE #29: 7" SYSTEMS USING A 4-LINK IN PLACE OF THE FACTORY RADIUS ARMS DO NOT REQUIRE THE USE OF ALIGNMENT CAMS. CASTER CAN BE ADJUSTED BY THE LOWER LINK ARMS
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #56: REAR ADD-A-LEAF REQUIRED FOR TRUCK TO SIT LEVEL WHEN USING 6" BLOCK INCLUDED IN KIT
Features & Benefits
- 100% Bolt-on system - No drilling, cutting, or welding necessary
- 75% increase in wheel travel
- Less body roll than stock
- 7" more travel from ride height to front bump stops
- State of the art dual-rate coil spring
- Lifetime guarantee that coil springs won't sag
- Clears 38" Tall Tires
- No change in towing capacity
- No drive shaft modifications needed

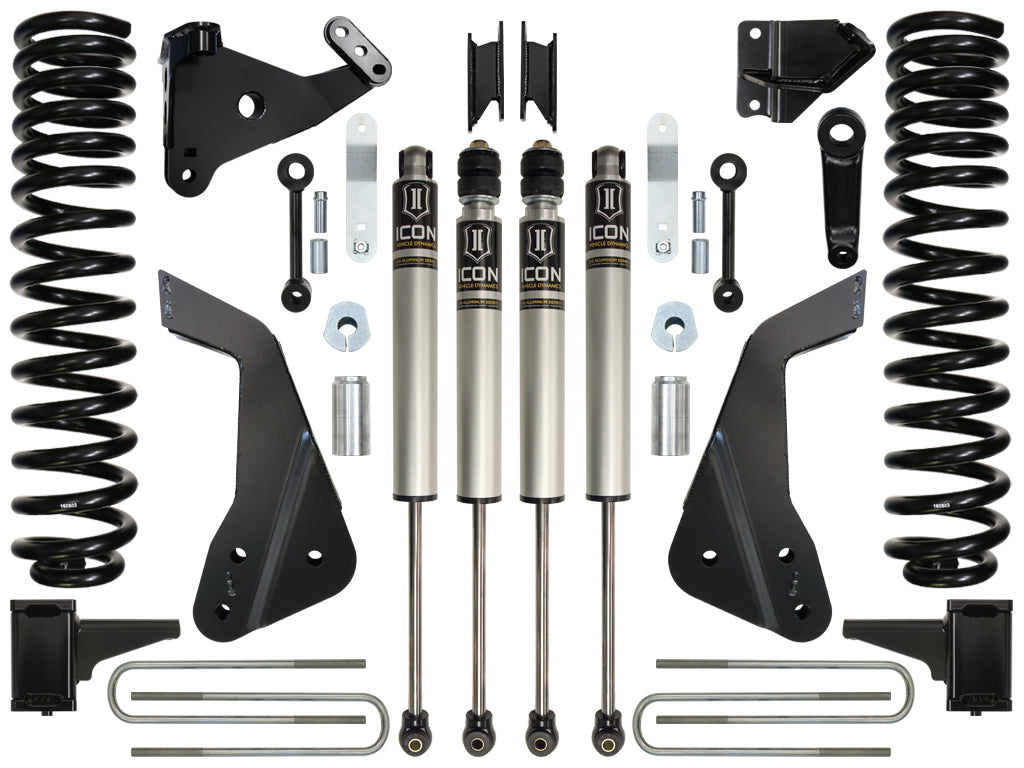

System Components:
- 196275 (QTY: 1) | 99-07 FSD 6" BLOCK KIT
- 36508 (QTY: 2) | 99-16 FSD 4WD 3-6" REAR 2.0 VS IR
- 37002 (QTY: 1) | 99-10 FSD REAR 17" U-BOLT KIT
- 62530 (QTY: 1) | 05-UP FSD 2.3 DEG ALIGNMENT CAM KIT
- 64040 (QTY: 1) | 05-10 FSD RADIUS ARM DROP KIT
- 66514 (QTY: 2) | 05-UP FSD 4WD 7" FRONT 2.0 VS IR
- 67010 (QTY: 1) | 05-07 FSD FRONT 7" BOX KIT
- 67015 (QTY: 1) | 05-UP FSD FRONT 7" DUAL RATE SPRING KIT
Installation Instructions & Docs
Year | Make | Model | Drive | Position | Lift |
2004 | Ford | F-250 Super Duty | 4WD | 7.0" Front / 6.0" Rear | |
2003 | Ford | F-250 Super Duty | 4WD | 7.0" Front / 6.0" Rear | |
2002 | Ford | F-250 Super Duty | 4WD | 7.0" Front / 6.0" Rear | |
2001 | Ford | F-250 Super Duty | 4WD | 7.0" Front / 6.0" Rear | |
2000 | Ford | F-250 Super Duty | 4WD | 7.0" Front / 6.0" Rear | |
1999 | Ford | F-250 Super Duty | 4WD | 7.0" Front / 6.0" Rear |
