4.5" Suspension System - Stage 1 Kit
Starting at $162/mo or 0% APR with Affirm. See if you qualify
Estimated Delivery in 3-7 business days
4.5" Suspension System - Stage 1 Kit
Starting at $162/mo or 0% APR with Affirm. See if you qualify
Estimated Delivery in 3-7 business days
Part Number | Lift/Lowered | Position | Item | Quantity |
---|---|---|---|---|
K64500 | 4.5" Lift | Front and Rear | 4.5" Suspension System - Stage 1 | 1 |
Overview
This 4.5" System for the 2005-2007 Super Duty is one the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The Dual-Rate front coil springs combined with our ICON 2.0 Aluminum Series shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks and u-bolts and our patented Adjustable Track bar giving the front end of these trucks perfect track alignment.
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 5" Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
- APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
- APPLICATION NOTE #28: PINCH WELD ON 05-10 SUPERDUTY RADIUS ARMS MAY COME IN CONTACT WITH RADIUS ARM DROP BRACKET HARDWARE
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- Ships in multiple boxes
Features & Benefits
- 50% increase in wheel travel
- Less body roll than stock truck
- 4.5" more travel from ride height to front bump stops
- State-of-the-art dual-rate coil spring
- Lifetime guarantee that coil springs won't sag
- Clears 35" Tall Tires & 37" Tall Tires w/ Minor Trimming
- No change in towing capacity
- No drive shaft modifications needed
- 100% Bolt-on system - no drilling, cutting or welding necessary for install

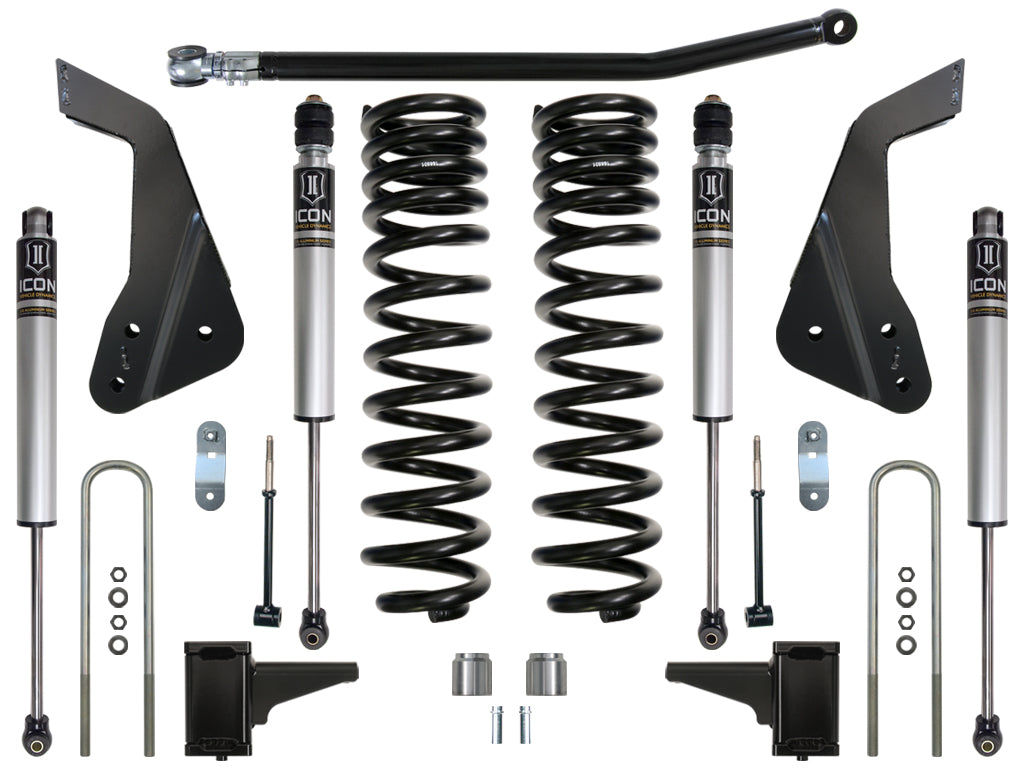

System Components:
- 64000 (QTY: 1) | 05-07 FSD FRONT 4.5" BOX KIT
- 64010 (QTY: 1) | 05-UP FSD FRONT 4.5" DUAL RATE SPRING KIT
- 64040 (QTY: 1) | 05-10 FSD RADIUS ARM DROP KIT
- 64035 (QTY: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
- 195275 (QTY: 1) | 99-UP FSD 5" BLOCK KIT
- 37002 (QTY: 1) | 99-10 FSD REAR 17" U-BOLT KIT
- 66513 (QTY: 2) | 05-UP FSD 4WD 4.5" FRONT 2.0 VS IR
- 36508 (QTY: 2) | 99-16 FSD 4WD 3-6" REAR 2.0 VS IR
Installation Instructions & Docs
Year | Make | Model | Drive | Position | Lift |
2004 | Ford | F-350 Super Duty | 4WD | 4.5" Front / 5.0" Rear | |
2003 | Ford | F-350 Super Duty | 4WD | 4.5" Front / 5.0" Rear | |
2002 | Ford | F-350 Super Duty | 4WD | 4.5" Front / 5.0" Rear | |
2001 | Ford | F-350 Super Duty | 4WD | 4.5" Front / 5.0" Rear | |
2000 | Ford | F-350 Super Duty | 4WD | 4.5" Front / 5.0" Rear | |
1999 | Ford | F-350 Super Duty | 4WD | 4.5" Front / 5.0" Rear |
