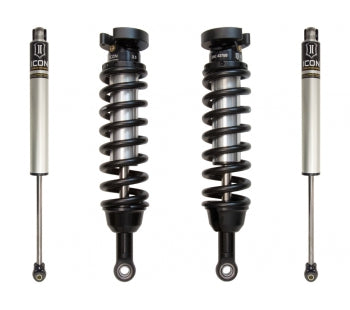

1-3" Suspension System - Stage 1 Kit
Estimated Delivery in 3-7 business days
1-3" Suspension System - Stage 1 Kit
Estimated Delivery in 3-7 business days
Part Number | Lift/Lowered | Position | Item | Quantity |
---|---|---|---|---|
K93101 | 1-3" Lift | Front and Rear | 1-3" Suspension System - Stage 1 | 1 |
Overview
The Ford Ranger T6 is used around the globe in many applications including a commuter vehicle, an industrial workhorse, and an off-road capable weekend warrior. This fact motivated ICON engineers to develop a line of products that were robust enough to handle the most extreme conditions while still being versatile enough to allow the vehicle to be used in every-day scenarios. Installing the Ranger T6 Stage 1 system provides a baseline level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON'ehicle-specific tuned 2.5" coilover shocks feature an internal reservoir for exceptional cooling properties, and ICON-engineered Eibach coil springs for superior vehicle "feel" throughout the range of travel. These 2.5" coilovers are height adjustable from 1-3" allowing you to level the Ranger T6 front to back, and install a larger tire when desired. ICON 2.0 Aluminum Series monotube rear shocks balance performance of the truck front to rear for a great all-around feel on any terrain. ICON Vehicle Dynamics'rd Ranger T6 suspension systems have been designed with maximum performance, versatility, and the serious driver in mind. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Ford Ranger T6.
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5 with 5" Backspace
- Recommended Aftermarket Tires: 32" x 11.00" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- Ships in multiple boxes
Features & Benefits
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Improved shock durability for the varying terrains and many uses this vehicle faces
- Adjustable coilovers from 1-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear shock with 5/8" shaft
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
System Components:
- 91110 (QTY: 1) | 11-UP RANGER T6 1-3" 2.5 VS IR COILOVER KIT
- 96517 (QTY: 2) | 11-UP RANGER T6 0-2" REAR 2.0 VS NR
Installation Instructions & Docs
Year | Make | Model | Drive | Position | Lift |
2018 | Ford | Ranger | 1-3" | ||
2017 | Ford | Ranger | 1-3" | ||
2016 | Ford | Ranger | 1-3" | ||
2015 | Ford | Ranger | 1-3" | ||
2014 | Ford | Ranger | 1-3" | ||
2013 | Ford | Ranger | 1-3" | ||
2012 | Ford | Ranger | 1-3" | ||
2011 | Ford | Ranger | 1-3" |
