RS5000X Gas Strut & Shocks Set
Starting at $38/mo or 0% APR with Affirm. See if you qualify
Estimated Delivery in 3-7 business days







RS5000X Gas Strut & Shocks Set
Starting at $38/mo or 0% APR with Affirm. See if you qualify
Estimated Delivery in 3-7 business days
Part Number Options | Lift/Lowered | Position | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Boot Included |
---|---|---|---|---|---|---|---|---|---|---|
RS55830 | 0.0" Lift | Front | Strut | 2 | 16.84" | 13.57" | 3.27" | BARPIN | ||
RS55198 | 0.0" Lift | Rear | Shock Absorber | 2 | 25.4" | 15.69" | 9.9" | EYELET/SLEEVE | EYELET/SLEEVE | Yes |
RS55832 | 6.0" Lift | Front | Strut | 2 | 23.76" | 20.31" | 3.45" | |||
RS55297 | 6.0" Lift | Rear | Shock Absorber | 2 | 30.438" | 18.08" | 12.39" | EYELET/SLEEVE | EYELET/SLEEVE | Yes |
RS5000X Gas Shock, The core of this new and innovative shock from Rancho is the unique and patented rebound valving system and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of your vehicle on and off-road. Each RS5000X shock is gas pressurized to 150 PSI.* The twin tube, gas pressurized shock has a variety of advantages including minimizing air-to-oil mixture that can cause foaming and shock fade. Gas pressurization also provides a mild boost of spring rate to the vehicle. The RS5000X series features a 2-1/4-inch diameter shock body. A larger shock body allows for increased fluid capacity to operate cooler and to increase vehicle control and performance at varying speeds and terrains. The RS5000X series combines a larger shock body with all-weather fluid, allowing the shock to withstand internal temperatures between -40 and 248 degrees Fahrenheit. The Rancho RS5000X series design includes patented progressive rebound and compression discs. At lower speeds or in the earlier stages of the shock's travel, an eccentric disc in the valve shim stacks will engage the valving at lower frequencies, helping to control the energy of motion as the cycle of the shock increases or decreases in its action. When hitting a pothole, off-road trail obstacle or similar activity, Rancho's Progressive Engagement Valving allows for early flow of fluid, helping to reduce harsh initial impacts and to control the flow of fluid in a progressive, gradual manner through the valving. During on- or off-road driving activities like washboarding or when travelling a rough fire road, the early flow of fluid helps to minimize a "rough" ride as the piston movement is able to glide through the initial travel motion of the shock with minimal ground impact or force. If needed, the Progressive Engagement Valving will further engage to maintain control and stability.
Year | Make | Model | Drive | Position |
2018 | Chevrolet | Silverado 1500 | RWD, 4WD | Front & Rear |
2017 | Chevrolet | Silverado 1500 | RWD, 4WD | Front & Rear |
2016 | Chevrolet | Silverado 1500 | RWD, 4WD | Front & Rear |
2015 | Chevrolet | Silverado 1500 | RWD, 4WD | Front & Rear |
2014 | Chevrolet | Silverado 1500 | RWD, 4WD | Front & Rear |
Product Details
Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!
View full product specifications
View warranty coverage
Free shipping within the lower 48 United States
Customer Reviews
- Reviews
- Questions
10 stars.
The best service and shocks I could hope for. Shocks were even thicker than the ones I put on 6 years ago. I got the same ones.. The salesman looked day and Night for the Ranchos that I needed and no one else sold. 2017 z71 with 6 inch pro comp lift. Great price and the other ones lasted 65k. Miles with half of those being off road. Awesome. Will never use anyone else. Thanks Peeps.

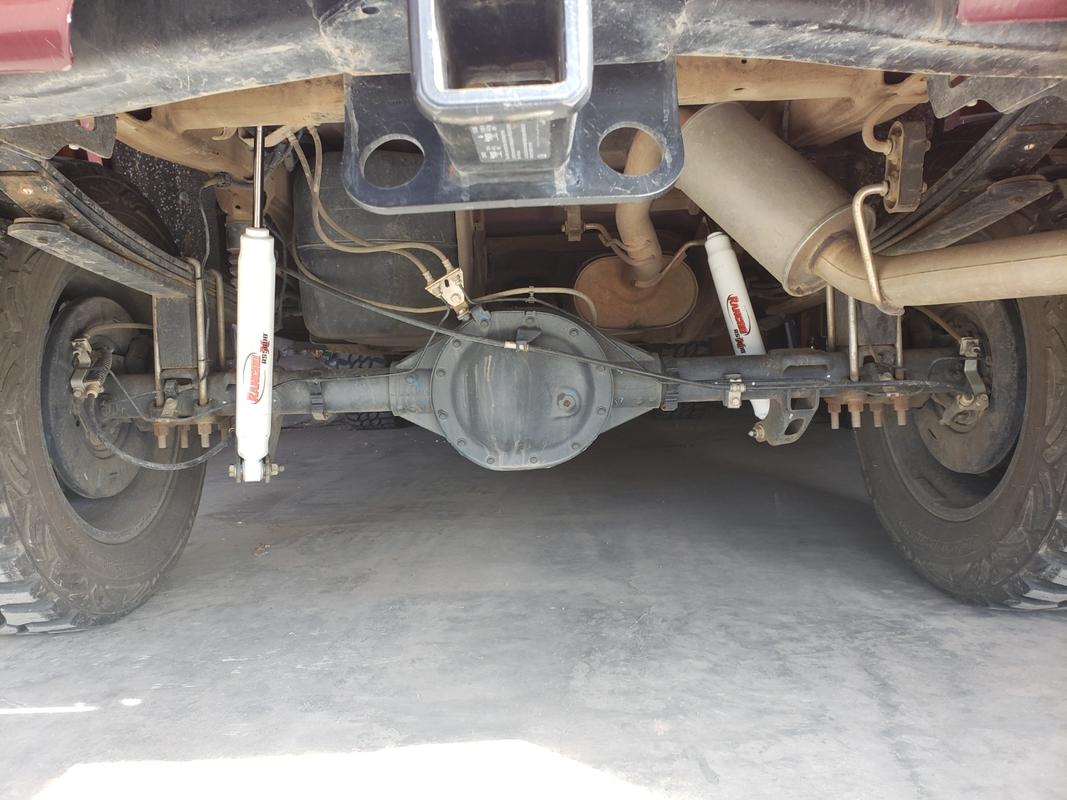

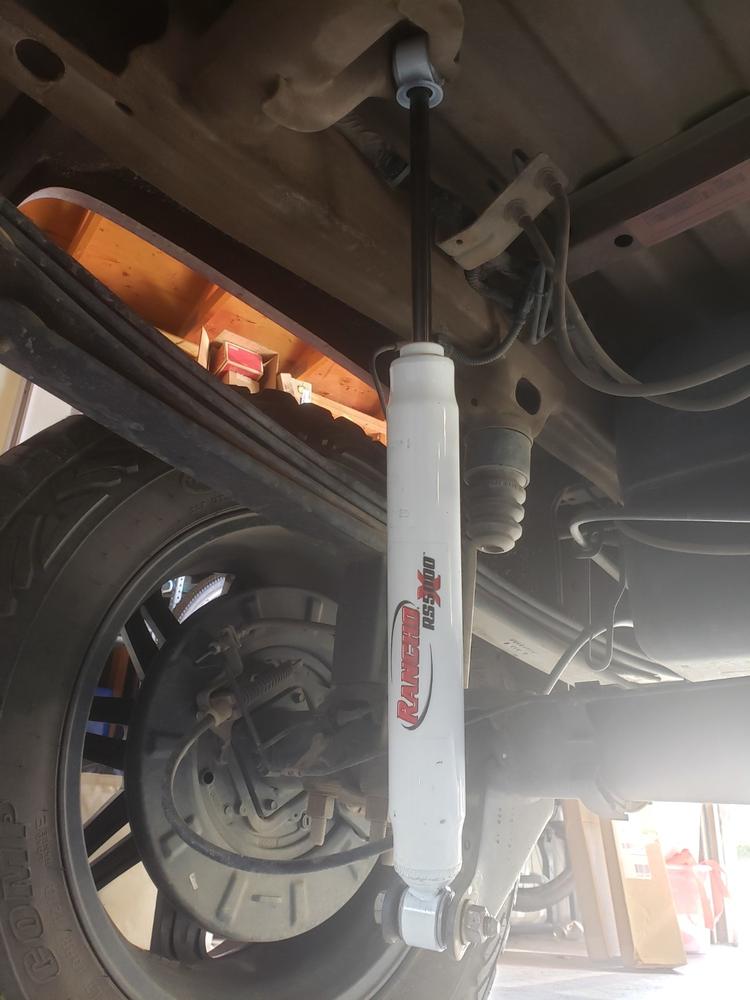

2016 Silverado z71 w/Rancho 5000x
I got the stock susoension taken of yesterday. Replaced them w/all new Rancho 5000x on all corners. So far I have noticed a more comfortable ride with way less body roll. Thanks again Shock Surplus for the support on my shipment.
