Rancho

RS5000X Gas Strut & Shocks Set

2014-2020 Ford F-150 RWD
$414.00

Starting at $38/mo or 0% APR with . See if you qualify

Out of Stock

Estimated Delivery in 3-7 business days

Rancho

RS5000X Gas Strut & Shocks Set

2014-2020 Ford F-150 RWD
$414.00

Starting at $38/mo or 0% APR with . See if you qualify

Out of Stock

Estimated Delivery in 3-7 business days

CHECK IF THIS FITS YOUR VEHICLE
Select Your Vehicle
Notify Me When Back in Stock
Authorized dealer
Free shipping within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!
Part Numbers & Details
Specifications
Part NumberLift/LoweredPositionItemQuantityExtended LengthCompressed LengthTravelTop MountBottom MountBoot Included
RS558340-1" LiftFrontStrut220.89"16.47"4.42"BARPIN
RS551490-1" LiftRearShock Absorber227.84"16.81"11.03"EYELET/SLEEVEEYELET/SLEEVEYes

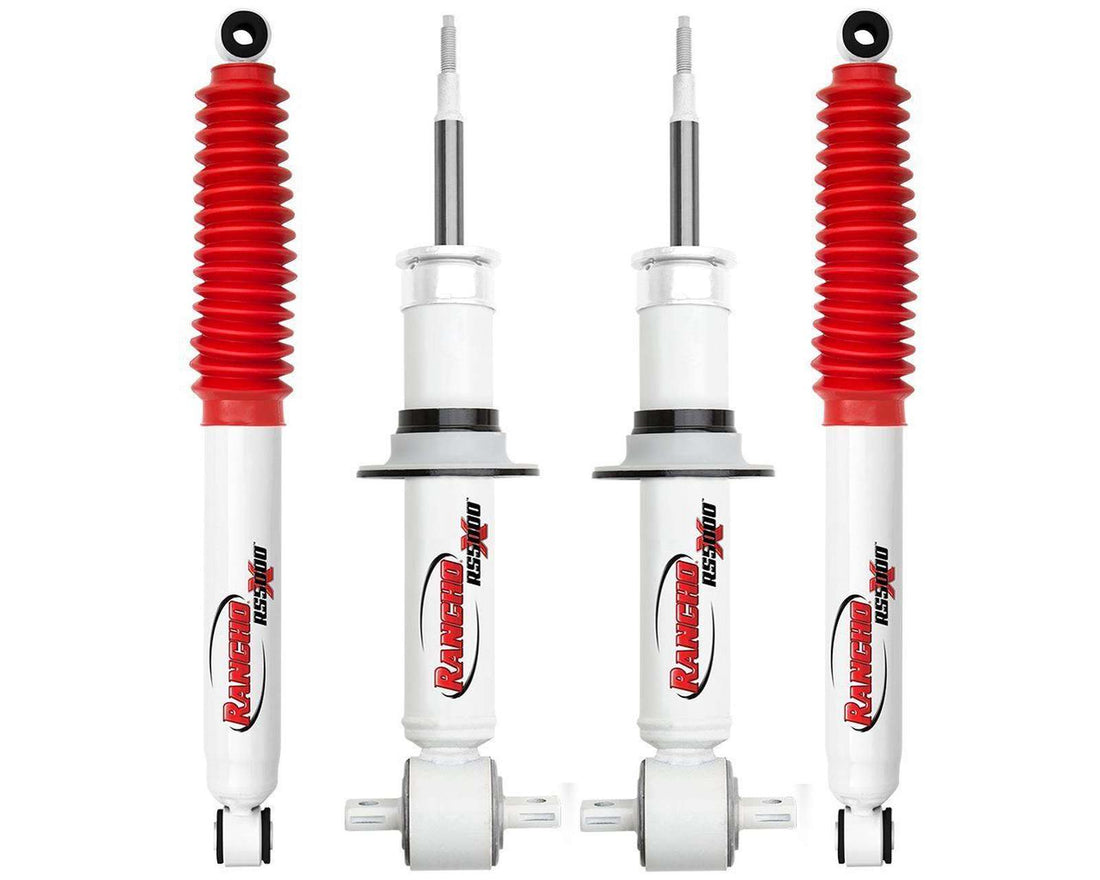

Package Contains 2 Struts and 2 Shocks
Full set of two shocks and two struts.
Rancho Lifetime Warranty
Manufacturer limited lifetime warranty protects against defects and premature failure.
Fits vehicles at factory height or with up to 1" front lift
For vehicles with no suspension modifications or up to 1" front lift systems and up to 1" rear lift systems
Designed for RWD vehicles
This product only works for RWD vehicles.
Factory Hardware for Installation
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation.
Product Highlights
Progressive engagement valving
Product Highlights
Low friction, self lubricating seal
Product Details

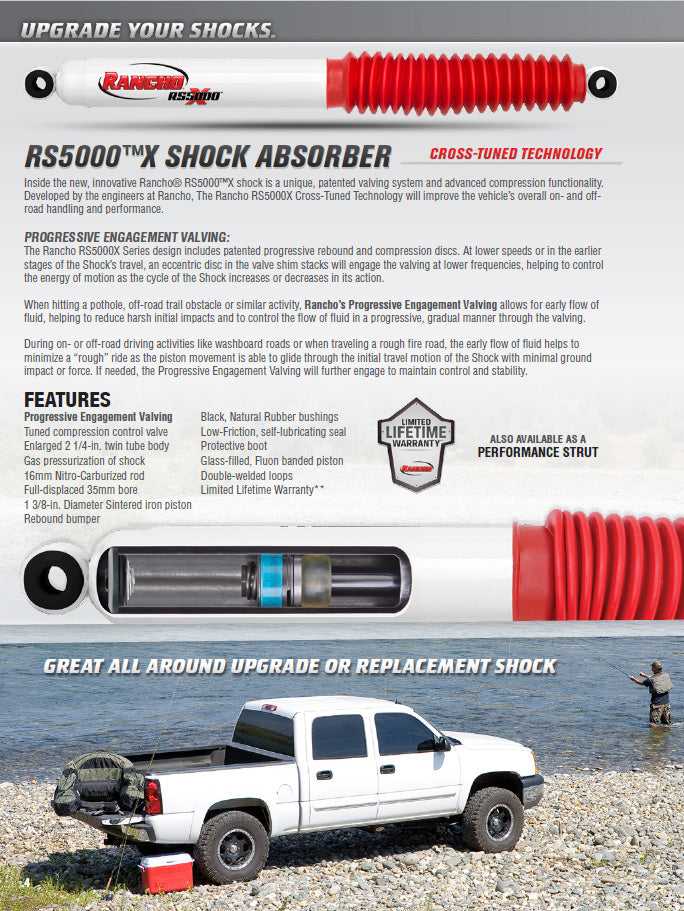

RS5000X Gas Shock, The core of this new and innovative shock from Rancho is the unique and patented rebound valving system and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of your vehicle on and off-road. Each RS5000X shock is gas pressurized to 150 PSI.* The twin tube, gas pressurized shock has a variety of advantages including minimizing air-to-oil mixture that can cause foaming and shock fade. Gas pressurization also provides a mild boost of spring rate to the vehicle. The RS5000X series features a 2-1/4-inch diameter shock body. A larger shock body allows for increased fluid capacity to operate cooler and to increase vehicle control and performance at varying speeds and terrains. The RS5000X series combines a larger shock body with all-weather fluid, allowing the shock to withstand internal temperatures between -40 and 248 degrees Fahrenheit. The Rancho RS5000X series design includes patented progressive rebound and compression discs. At lower speeds or in the earlier stages of the shock's travel, an eccentric disc in the valve shim stacks will engage the valving at lower frequencies, helping to control the energy of motion as the cycle of the shock increases or decreases in its action. When hitting a pothole, off-road trail obstacle or similar activity, Rancho's Progressive Engagement Valving allows for early flow of fluid, helping to reduce harsh initial impacts and to control the flow of fluid in a progressive, gradual manner through the valving. During on- or off-road driving activities like washboarding or when travelling a rough fire road, the early flow of fluid helps to minimize a "rough" ride as the piston movement is able to glide through the initial travel motion of the shock with minimal ground impact or force. If needed, the Progressive Engagement Valving will further engage to maintain control and stability.

Compatibility List
YearMakeModelDrivePositionLift
2020FordF-150RWDFront & Rear0-1"
2019FordF-150RWDFront & Rear0-1"
2018FordF-150RWDFront & Rear0-1"
2017FordF-150RWDFront & Rear0-1"
2016FordF-150RWDFront & Rear0-1"
2015FordF-150RWDFront & Rear0-1"
2014FordF-150RWDFront & Rear0-1"

Product Details

Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!

Part Numbers & Details

View full product specifications

Close specs
Part Numbers & Details
Package Contains 2 Struts and 2 Shocks
Full set of two shocks and two struts.
Rancho Lifetime Warranty
Manufacturer limited lifetime warranty protects against defects and premature failure.
Fits vehicles at factory height or with up to 1" front lift
For vehicles with no suspension modifications or up to 1" front lift systems and up to 1" rear lift systems
Designed for RWD vehicles
This product only works for RWD vehicles.
Factory Hardware for Installation
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation.
Product Highlights
Progressive engagement valving
Product Highlights
Low friction, self lubricating seal
Specifications
Part NumberLift/LoweredPositionItemQuantityExtended LengthCompressed LengthTravelTop MountBottom MountBoot Included
RS558340-1" LiftFrontStrut220.89"16.47"4.42"BARPIN
RS551490-1" LiftRearShock Absorber227.84"16.81"11.03"EYELET/SLEEVEEYELET/SLEEVEYes
Product Details

RS5000X Gas Shock, The core of this new and innovative shock from Rancho is the unique and patented rebound valving system and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of your vehicle on and off-road. Each RS5000X shock is gas pressurized to 150 PSI.* The twin tube, gas pressurized shock has a variety of advantages including minimizing air-to-oil mixture that can cause foaming and shock fade. Gas pressurization also provides a mild boost of spring rate to the vehicle. The RS5000X series features a 2-1/4-inch diameter shock body. A larger shock body allows for increased fluid capacity to operate cooler and to increase vehicle control and performance at varying speeds and terrains. The RS5000X series combines a larger shock body with all-weather fluid, allowing the shock to withstand internal temperatures between -40 and 248 degrees Fahrenheit. The Rancho RS5000X series design includes patented progressive rebound and compression discs. At lower speeds or in the earlier stages of the shock's travel, an eccentric disc in the valve shim stacks will engage the valving at lower frequencies, helping to control the energy of motion as the cycle of the shock increases or decreases in its action. When hitting a pothole, off-road trail obstacle or similar activity, Rancho's Progressive Engagement Valving allows for early flow of fluid, helping to reduce harsh initial impacts and to control the flow of fluid in a progressive, gradual manner through the valving. During on- or off-road driving activities like washboarding or when travelling a rough fire road, the early flow of fluid helps to minimize a "rough" ride as the piston movement is able to glide through the initial travel motion of the shock with minimal ground impact or force. If needed, the Progressive Engagement Valving will further engage to maintain control and stability.

Compatibility List
YearMakeModelDrivePositionLift
2020FordF-150RWDFront & Rear0-1"
2019FordF-150RWDFront & Rear0-1"
2018FordF-150RWDFront & Rear0-1"
2017FordF-150RWDFront & Rear0-1"
2016FordF-150RWDFront & Rear0-1"
2015FordF-150RWDFront & Rear0-1"
2014FordF-150RWDFront & Rear0-1"
