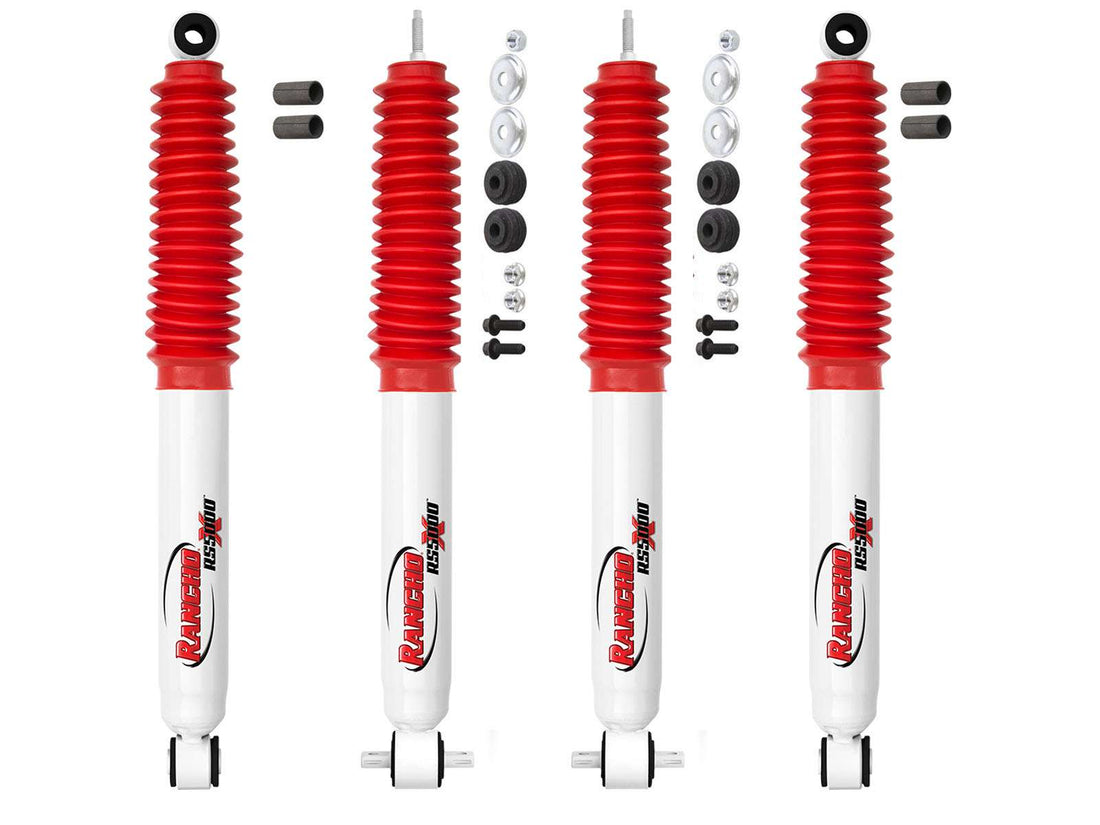

RS5000X Gas Shocks Set w/0" lift
Starting at $24/mo or 0% APR with Affirm. See if you qualify
Estimated Delivery in 3-7 business days






RS5000X Gas Shocks Set w/0" lift
Starting at $24/mo or 0% APR with Affirm. See if you qualify
Estimated Delivery in 3-7 business days
Part Number | Lift/Lowered | Position | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Boot Included |
---|---|---|---|---|---|---|---|---|---|---|
RS55229 | 0.0" Lift | Front | Shock Absorber | 2 | 18.25" | 13.72" | 4.53" | OEM | BARPIN | Yes |
RS55126 | 0.0" Lift | Rear | Shock Absorber | 2 | 26.42" | 16.01" | 10.41" | EYELET | EYELET/SLEEVE | Yes |
RS5000X Gas Shock, The core of this new and innovative shock from Rancho is the unique and patented rebound valving system and an advanced compression phase of the shock absorber. This proprietary process developed by the ride engineers at Rancho will elevate the overall handling and performance of your vehicle on and off-road. Each RS5000X shock is gas pressurized to 150 PSI.* The twin tube, gas pressurized shock has a variety of advantages including minimizing air-to-oil mixture that can cause foaming and shock fade. Gas pressurization also provides a mild boost of spring rate to the vehicle. The RS5000X series features a 2-1/4-inch diameter shock body. A larger shock body allows for increased fluid capacity to operate cooler and to increase vehicle control and performance at varying speeds and terrains. The RS5000X series combines a larger shock body with all-weather fluid, allowing the shock to withstand internal temperatures between -40 and 248 degrees Fahrenheit. The Rancho RS5000X series design includes patented progressive rebound and compression discs. At lower speeds or in the earlier stages of the shock's travel, an eccentric disc in the valve shim stacks will engage the valving at lower frequencies, helping to control the energy of motion as the cycle of the shock increases or decreases in its action. When hitting a pothole, off-road trail obstacle or similar activity, Rancho's Progressive Engagement Valving allows for early flow of fluid, helping to reduce harsh initial impacts and to control the flow of fluid in a progressive, gradual manner through the valving. During on- or off-road driving activities like washboarding or when travelling a rough fire road, the early flow of fluid helps to minimize a "rough" ride as the piston movement is able to glide through the initial travel motion of the shock with minimal ground impact or force. If needed, the Progressive Engagement Valving will further engage to maintain control and stability.
Year | Make | Model | Drive | Position | Lift |
2011 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
2010 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
2009 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
2008 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
2007 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
2006 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
2005 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
2004 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
2003 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
2002 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
2001 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
2000 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
1999 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
1998 | Ford | Ranger | 4WD | Front & Rear | 0.0" |
Product Details
Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!
View full product specifications
View warranty coverage
Free shipping within the lower 48 United States
Customer Reviews
- Reviews
- Questions
Great ride with a load and towing with my Ford ranger
I tested the Rancho RS5000X Gas Shocks on my 2003 Ford Ranger 4X4 With a 450# wood stove in the back and a 1998 Jeep Grand Cherokee in tow on a tow dolly .I headed out on a trip from Olympia wa to mullan Idaho over two mountain passes and all kinds of roads 400 plus miles.The Shocks worked Great!.Good smooth ride with the load and what I was towing I will buy some again Great Shocks!!
2011 Ford Ranger Sport 4x4 / Rancho 5000
Shock Surplus price and delivery was excellent. Perfect fit and great improvement in my trucks ride.
Rancho RS5000
Truck rides great and feels like new again
RANCHO FOR MY RANGER
I JUST LOVE THE RANCHO SHOCKS. I PUT NEW UPPER & LOWER BALL JOINTS ON MY RANGER AND DECIDED I SHOULD JUST GO AHEAD AND COMPLETE THE PROJECT WITH A SET OF NEW SHOCKS. I BOUGHT THE TRUCK NEW AND NOW WITH 390,000 MILES SHE IS LIKE BRAND NEW AGAIN. THE NEW SHOCKS MADE A WORLD OF DIFFERENCE. SHOCK SURPLUS WAS GREAT TO WORK WITH. GREAT REVIEWS ON BOTH THE BILSTEIN & THE RANCHOS MADE FOR A TUFF DECISION. RANCHO FOR THE WIN! THANKS SHOCK SURPLUS.
