Old Man Emu

BP-51 Bypass Coilovers Front Pair w/0-3" lift

2005-2023 Toyota Tacoma

$1,811.95

Starting at $114/mo or 0% APR with Affirm. See if you qualify

In Stock

Estimated Delivery in 3-7 business days

BP5190006L x1 BP5190006R x1 VM80010016 x1

Old Man Emu BP-51 Bypass Coilovers Front Pair for 2005-2023 Toyota Tacoma w/0-3" lift

Expert's Guide to 05-23 Tacoma Shocks

Old Man Emu

BP-51 Bypass Coilovers Front Pair w/0-3" lift

2005-2023 Toyota Tacoma

$1,811.95

Starting at $114/mo or 0% APR with Affirm. See if you qualify

In Stock

Estimated Delivery in 3-7 business days

Authorized dealer

Free shipping within the lower 48 United States

Brand new parts with warranty coverage

Free 30-day return and exchange on qualifying orders

Got Questions?

Our experts are here to help!

Chat now Request a call back

Part Numbers & Details

Specifications

Part Number	Lift/Lowered	Position	Item	Quantity	Extended Length	Compressed Length	Travel
VM80010016	0-3" Lift	Front	Spring Fitting Kit	1
BP5190006L	0-3" Lift	Front	Strut & Spring	1	21.457"	17.283"	4.173"
BP5190006R	0-3" Lift	Front	Strut & Spring	1	21.457"	17.283"	4.173"

2 Strut & Spring Assemblies with Spring Fitting Kit

Front pair of two coilovers with matched OME spring fitting kit.

Old Man Emu 3 Year / 35,000 Mile Warranty

Manufacturer warranty protects against defects and premature failure.

Lifts your vehicle up to 3" in the front

For vehicles with no suspension modifications or up to 3" in the front.

Compression Adjustable

Damping adjustment for weight, towing, and different surface conditions

Rebound Adjustment

Fine tuning ride comfort according to vehicle weight and comfort and control preference

Adjustable Ride Height

Spring preload adjustment for ride height changes between factory height and 2-3" of lift.

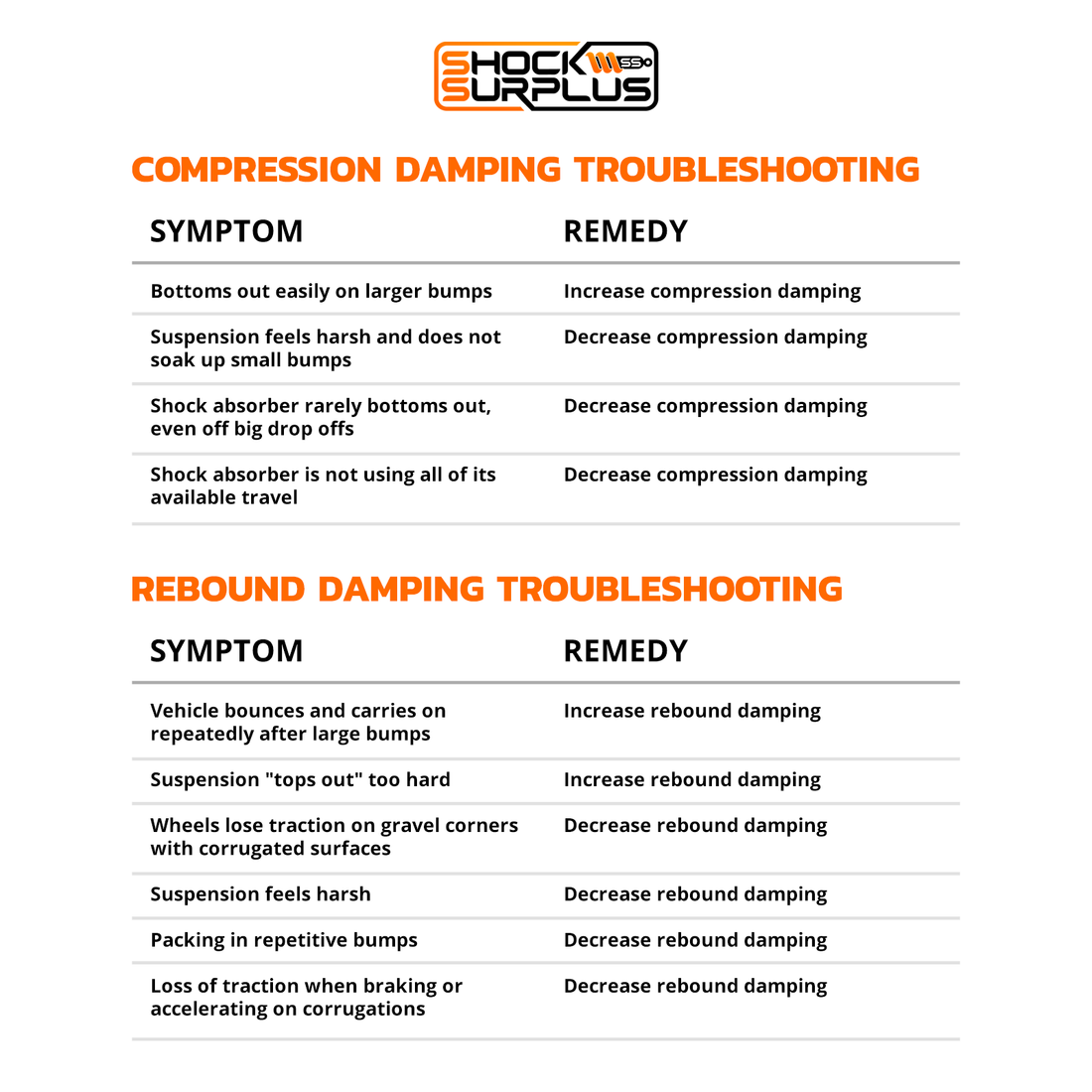

Compression Adjustment

Compression Damping adjustment to control how the suspension responds when encountering a bump or obstacle.

Rebound Adjustment

Rebound Damping adjustment to control the rate at which the wheels and tires rebound after an obstacle.

Rebuild and Re-Valve

The BP51 shocks and coilovers are rebuildable and can be re-valved by a qualified suspension technician.

Reservoir & Shock Mounts

Shock Mounting VM kit required for shock and reservoir mounting hardware

Product Details

The Old Man EMU BP51 Internal Bypass shocks and coilovers feature unparalleled on and offroad performance through position sensitive bypass technology. Unlike most other adjustable shock absorbers, which provide adjustment for compression only, the BP-51 range allows on vehicle, independent adjustability of both rebound and compression to offer class leading ride customization that can be tailored to individual vehicle or trip requirements.

Compatibility List

Year	Make	Model	Drive	Position	Lift
2023	Toyota	Tacoma		Front	0-3"
2022	Toyota	Tacoma		Front	0-3"
2021	Toyota	Tacoma		Front	0-3"
2020	Toyota	Tacoma		Front	0-3"
2019	Toyota	Tacoma		Front	0-3"
2018	Toyota	Tacoma		Front	0-3"
2017	Toyota	Tacoma		Front	0-3"
2016	Toyota	Tacoma		Front	0-3"
2015	Toyota	Tacoma		Front	0-3"
2014	Toyota	Tacoma		Front	0-3"
2013	Toyota	Tacoma		Front	0-3"
2012	Toyota	Tacoma		Front	0-3"
2011	Toyota	Tacoma		Front	0-3"
2010	Toyota	Tacoma		Front	0-3"
2009	Toyota	Tacoma		Front	0-3"
2008	Toyota	Tacoma		Front	0-3"
2007	Toyota	Tacoma		Front	0-3"
2006	Toyota	Tacoma		Front	0-3"
2005	Toyota	Tacoma		Front	0-3"

Product Details

Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!

Part Numbers & Details

View full product specifications

Close specs

Part Numbers & Details

2 Strut & Spring Assemblies with Spring Fitting Kit

Front pair of two coilovers with matched OME spring fitting kit.

Old Man Emu 3 Year / 35,000 Mile Warranty

Manufacturer warranty protects against defects and premature failure.

Lifts your vehicle up to 3" in the front

For vehicles with no suspension modifications or up to 3" in the front.

Compression Adjustable

Damping adjustment for weight, towing, and different surface conditions

Rebound Adjustment

Fine tuning ride comfort according to vehicle weight and comfort and control preference

Adjustable Ride Height

Spring preload adjustment for ride height changes between factory height and 2-3" of lift.

Compression Adjustment

Compression Damping adjustment to control how the suspension responds when encountering a bump or obstacle.

Rebound Adjustment

Rebound Damping adjustment to control the rate at which the wheels and tires rebound after an obstacle.

Rebuild and Re-Valve

The BP51 shocks and coilovers are rebuildable and can be re-valved by a qualified suspension technician.

Reservoir & Shock Mounts

Shock Mounting VM kit required for shock and reservoir mounting hardware

Specifications

Part Number	Lift/Lowered	Position	Item	Quantity	Extended Length	Compressed Length	Travel
VM80010016	0-3" Lift	Front	Spring Fitting Kit	1
BP5190006L	0-3" Lift	Front	Strut & Spring	1	21.457"	17.283"	4.173"
BP5190006R	0-3" Lift	Front	Strut & Spring	1	21.457"	17.283"	4.173"

Product Details

Compatibility List

Year	Make	Model	Drive	Position	Lift
2023	Toyota	Tacoma		Front	0-3"
2022	Toyota	Tacoma		Front	0-3"
2021	Toyota	Tacoma		Front	0-3"
2020	Toyota	Tacoma		Front	0-3"
2019	Toyota	Tacoma		Front	0-3"
2018	Toyota	Tacoma		Front	0-3"
2017	Toyota	Tacoma		Front	0-3"
2016	Toyota	Tacoma		Front	0-3"
2015	Toyota	Tacoma		Front	0-3"
2014	Toyota	Tacoma		Front	0-3"
2013	Toyota	Tacoma		Front	0-3"
2012	Toyota	Tacoma		Front	0-3"
2011	Toyota	Tacoma		Front	0-3"
2010	Toyota	Tacoma		Front	0-3"
2009	Toyota	Tacoma		Front	0-3"
2008	Toyota	Tacoma		Front	0-3"
2007	Toyota	Tacoma		Front	0-3"
2006	Toyota	Tacoma		Front	0-3"
2005	Toyota	Tacoma		Front	0-3"

Warranty

View warranty coverage

Close specs

ARB Manufacturer's Warranty

Air Locker Inc. (ARB) products are warranted free from defects in materials and workmanship for a period of twenty four (24) months from the date of initial retail purchase, with the exception of ARB Fridge/Freezers and Old Man Emu suspension products which carry a thirty six (36) month, 37,000 mile (OME suspension) limited warranty, ARB Air Locker which carries a sixty (60) month warranty and LINX which carries a twelve (12) month warranty. Air Locker Inc's (ARB) obligation under this warranty shall be limited to repairing, replacing or crediting at its option, any part found to be defective.

Air Locker Inc. (ARB) does not warrant or make any representations concerning its goods when:

The products are purchased used, scratch and dent or open box.
The products are not installed, used, and maintained strictly in accordance with the manufacturer's instructions
The products are installed in vehicles that are used in competition
The products are installed in vehicles fitted with aftermarket non-standard tires with diameters in excess of OEM specifications
The products are installed in vehicles with engines that have been modified to increase performance

Air Locker Inc. (ARB) will not be liable for labor charges and other intangible or consequential losses that might be claimed as a result of a failure of any ARB component or part thereof to the extent permitted by state law.

A claim under this warranty should be made as follows:

Contact Air Locker Inc. technical department at 425-264-1391 or via email at tech@arbusa.com to request a Returned Goods Authorization (RGA) number and instructions for returning the defective component.

Shipping & Returns

Free shipping within the lower 48 United States

Close specs

Shipping Info

Free Shipping on most orders to the lower 48 U.S. states. Truck freight items (over 100 lbs) and custom orders require a separate shipping quote.

Applies to items like axles, leaf springs, and long-travel kits.
No international shipping on freight items — only to U.S.-based freight forwarders.
Worldwide shipping available: Canada, Europe, UAE, Australia, and most of Asia.

Returns & Exchanges

30-Day Return Policy — Items must be new, unused, uninstalled, and include all original hardware.

No restocking fees for exchanges or gift card credit.
10% restocking fee on refunds, returns cost us real money, so the 10% helps keep the lights on.
Installed, damaged, or dirty parts cannot be returned.
Any returns missing hardware or miscellaneous items, the return will be denied and returned to the buyer at the buyer's expense.

Need help? Use Live Chat or Email Us anytime.

Start a Return or Exchange

Return Shipping Responsibility

CHECKOUT+ Package and Order Protection plan provides prepaid return labels for any returned packages, this fee varies by product.

Our mistake (misboxed, wrong item, damaged): We cover the cost of return shipping.
Buyer mistake (wrong item ordered, fitment error, changed mind): Return shipping is the buyer's responsibility - unless CHECKOUT+ Package Protection has been purchased.

Under 50 lbs: Discounted carrier rate
Over 50 lbs: Discounted carrier rate + $25 oversize fee

Refunds

Refunds are issued within 5–7 business days of receiving your return.

Funds typically post to your account in 1–3 business days depending on your payment method.
There is a 10% restocking fee on all refunds. We don’t get our original shipping, labor, or transaction fees back — so the 10% restocking fee keeps the lights on.
You will receive an email once your refund is processed.

International Orders

All international orders are final sale.
Returns via freight forwarders only accepted if the product hasn’t left the U.S.
Import taxes, duties, and other possible import-related fees are the buyer’s responsibility and not included in our shipping charges.
We are not responsible for goods once exported outside the U.S.

Customer Reviews

4.3 Based on 26 Reviews

5 ★

81%

4 ★

3 ★

2 ★

1 ★

15%

Customer Photos

Old Man Emu BP-51 2 Inch Suspension Lift Kit w/ UCA for 2005-2023 Toyota Tacoma w/2" lift - Customer Photo From Branden Street

Old Man Emu BP-51 Bypass Coilovers Front Pair for 2005-2023 Toyota Tacoma w/0-3" lift - Customer Photo From Charles Card

Old Man Emu BP-51 Bypass Coilovers + Rear Internal Bypass Shocks Set for 2007-2021 Toyota Tundra 4WD w/0-3" lift - Customer Photo From Daniel Sasser

Old Man Emu BP-51 Bypass Coilovers Front Pair for 2005-2023 Toyota Tacoma w/0-3" lift - Customer Photo From David

Old Man Emu BP-51 2 Inch Suspension Lift Kit w/ UCA Kit for 2005-2023 Toyota Tacoma w/2" lift - Customer Photo From Devin H

Old Man Emu BP-51 Internal Bypass Reservoir Shocks Rear Pair for 2007-2021 Toyota Tundra 4WD - Customer Photo From Bao Nguyen

Old Man Emu BP-51 Bypass Coilovers Front Pair for 2010-2023 Toyota 4Runner w/0-3" lift - Customer Photo From David Lang

Write a Review Ask a Question

Reviews
Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Branden S.

United States

01/06/2025

This is how a vehicle should handle

Honestly the best purchase i have made for my 2019 tacoma. Handles like a dream, instructions were simple and had all torque specs. Everything else i found on the internet. Recommend the SRQ adjustable sway bar links. Handles like brand new. The old man emu kit does lift the rear to 2.75 in and the front was a 2in from factory.

Shock Surplus Old Man Emu BP-51 Bypass Coilovers Front Pair for 2005-2023 Toyota Tacoma w/0-3 lift Review

Cody

United States

10/08/2024

Poor service from ARB

WARNING, do not purchase unless you’re ok with mailing the suspension to Washington on your own dime to have them rebuild the shocks as they do not allow anyone else to do so.

Stephen B.

United States

09/18/2024

Big difference offroad

I have a 19 Tacoma TRD Offroad with a Four Wheel Camper Project M pop up camper. I'm carrying at least 600 pounds all the time, and much more when camping. The stock suspension would bounce really bad in big potholes, dips, and ruts, and the stock Bilstein rear shocks were already shot at 38,000 miles. I installed the ARB Old Man Emu kit with the BP51 shocks, and the heavy load rear springs, and what a difference. The truck soaks up the big bumps now, without bouncing us. I'm very pleased with the ride offroad now. The kit did lift my truck higher than the claimed 2 inches, but I'm hoping the suspension will break in and settle a little lower. I did receive 1 bad rear shock in the kit, it was oily, and Shock Surplus took care of it fairly quickly.

Charles C.

United States

07/26/2024

Shickyshocks (that’s a good thing)!

I installed the rear shocks myself, but had a pro shop do my front coilovers and the alignment, so a little bit of diy which I enjoyed. I put on my gen 3 Tacoma, OME BP-51’s and a set of Icon RXT stage 3 (full pack with add a leaf) leaf springs. The support crew at ShockSurplus was outstanding and was appreciated just as much as the new feel good, highly adjustable ride. Thanks boyeeeez!

Devin

United States

06/18/2024

These were OK, until they broke prematurely...

Made it two years and have a broken rear shock. ARB has been zero help with sending a replacement, instead they want me to not have my daily driver for multiple weeks while they "investigate" to see if it's worthy of a repair under warranty. Not at all impressed with their support for this almost $5,000 set of shocks! I gave these a 5 star review at first because they seemed great. Now I can't recommend them at all. It's really too bad.

James 09/05/2024

Is the body aluminum or steel?

Answers (1)

Stephen 09/05/2024

Aluminum. They are built well and ride amazing.

Tyson 06/18/2023

I have an after market bumper its aluminum so only 60 pounds and a smittybilt 10k winch up front will I need a heavier spring rate on the bp-51s so there's no sag? 2018 Toyota Tacoma.

Answers (1)

Shock Surplus 06/22/2023

You should be solid with the standard springs. These use a 650 lb coil so if anything you may need to add a little preload to get to your desired ride height, however they should have plenty of rate for your needs.

Edgar I. 03/22/2023

Will this work with the Dirt King long travel kit?

Answers (1)

Shock Surplus 04/18/2023

No it will not.

Ernesto 09/27/2022

Do these come with HD springs if not are these shocks compatible with ome heavy duty springs

Answers (1)

Shock Surplus 09/27/2022

These come with 13" 650 lb coil springs which is similar in rate to the 2886 Heavy duty springs although not cross compatible

Kevin 09/19/2022

How is the ride quality with these on versus stock? My buddy has the 2021 tundra Trd pro with the Fox shocks and I love the ride quality. It’s sturdy yet soft when it comes to road riding and off roaring still. Will these produce a similar ride?

Answers (1)

Shock Surplus 09/19/2022

These use an almost identical design to the TRD PRO Fox 2.5s, so they will feel very similar, however, the additional travel and the huge range of compression and rebound adjustment should also allow you to surpass the ride and overall performance of the TRD Pro parts.
