Icon

Performance Shocks System Stage 1 Kit

1998-2007 Lexus LX470 4WD
$1,139.85

In Stock

Estimated Delivery in 3-7 business days

K53081
K53081
Icon Performance Shocks System Stage 1 Kit for 1998-2007 Lexus LX470 4WD
Icon

Performance Shocks System Stage 1 Kit

1998-2007 Lexus LX470 4WD
$1,139.85

In Stock

Estimated Delivery in 3-7 business days

CHECK IF THIS FITS YOUR VEHICLE
Select Your Vehicle
Authorized dealer
Free shipping within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!
Chat now Request a call back
Part Numbers & Details
Specifications
Part NumberLift/LoweredPositionItemQuantity
K530810-2" LiftFront and RearPerformance Shock System Stage 11

Overview

The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Understanding this, ICON engineers have developed a unique 2.5" diameter front shock that can handle these demands. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads. 2.0 Aluminum Series rear shocks are included in this stage to offer balanced damping front to rear.

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5 with 4.75" Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #58: KITS CONSIST OF SHOCKS ONLY. ADDITIONAL COMPONENTS REQUIRED TO ACHIEVE DESIRED LIFT HEIGHT OVER STOCK
  • APPLICATION NOTE #73: AFTERMARKET CONTROL ARM REQUIRED FOR CLEARANCE
  • APPLICATION NOTE #97: NOT COMPATIBLE WITH AHC EQUIPPED MODELS
  • APPLICATION NOTE #98: REQUIRES CASTER CORRECTION BUSHINGS OR PLATES
  • Ships in multiple boxes

Features & Benefits

  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated front shock body with 7/8" shaft
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.0 aluminum body rear IFP shock with 5/8" shaft
  • 100% Bolt-on - no drilling, cutting or welding necessary for install

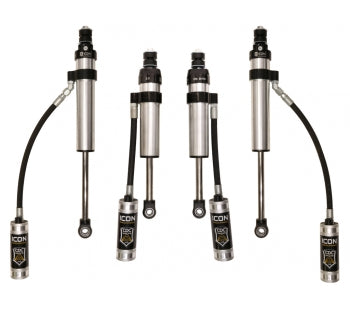

System Components:

  • 56510 (QTY: 2) | 91-07 LAND CRUISER 80/100 0-3" REAR 2.0 VS IR
  • 57607P (QTY: 1) | 98-07 LAND CRUISER 100 0-2" FRONT 2.5 VS IR PAIR

Installation Instructions & Docs

Compatibility List
YearMakeModelDrivePositionLift
2007LexusLX4704WD0-2"
2006LexusLX4704WD0-2"
2005LexusLX4704WD0-2"
2004LexusLX4704WD0-2"
2003LexusLX4704WD0-2"
2002LexusLX4704WD0-2"
2001LexusLX4704WD0-2"
2000LexusLX4704WD0-2"
1999LexusLX4704WD0-2"
1998LexusLX4704WD0-2"

Product Details
