Icon

4-5.5" Coilover Conversion System - Stage 2 Kit

1999-2004 Ford F-250 Super Duty 4WD
$4,508.35 $4,751.63

Starting at $282/mo or 0% APR with . See if you qualify

Out of Stock

Estimated Delivery in 3-7 business days

K63112
K63112

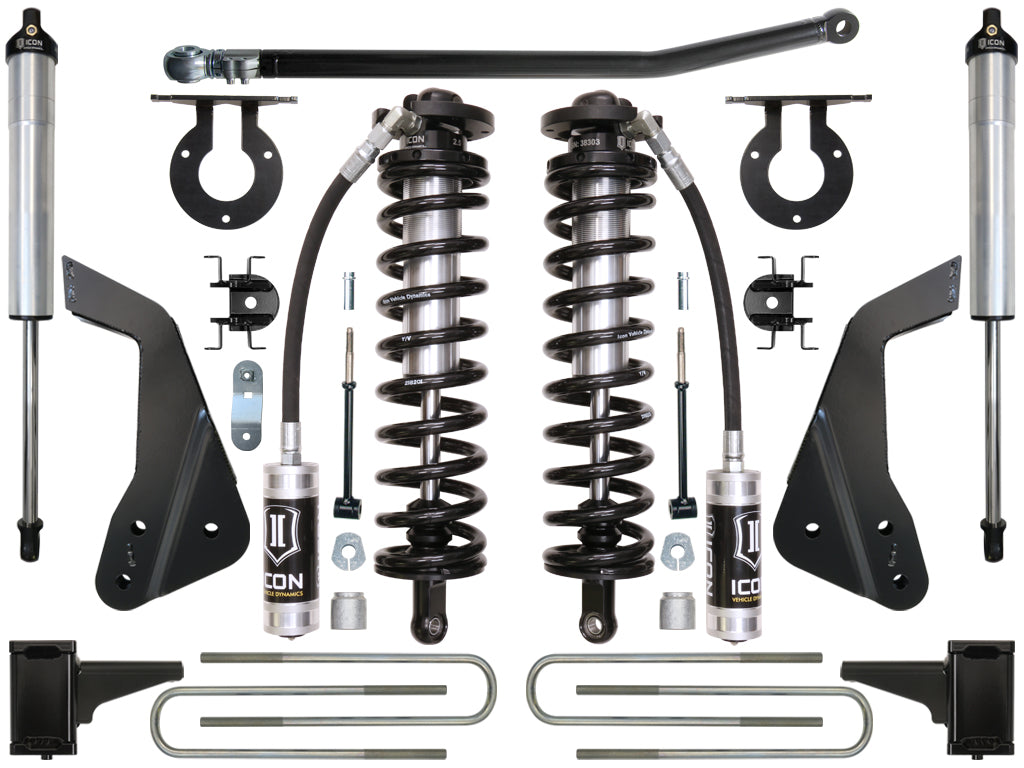

Icon 4-5.5" Coilover Conversion System Stage 2 Kit for 1999-2004 Ford F250 Super Duty 4WD
Expert's Guide to 05-07 F-250 Super Duty Shocks
Icon

4-5.5" Coilover Conversion System - Stage 2 Kit

1999-2004 Ford F-250 Super Duty 4WD
$4,508.35 $4,751.63

Starting at $282/mo or 0% APR with . See if you qualify

Out of Stock

Estimated Delivery in 3-7 business days

CHECK IF THIS FITS YOUR VEHICLE
Select Your Vehicle
Authorized dealer
Free shipping within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!
Chat now Request a call back
Part Numbers & Details
Specifications
Part NumberLift/LoweredPositionItemQuantity
K631124-5.5" LiftFront and Rear4-5.5" Coilover Conversion System - Stage 21

Overview

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5" Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 5" Backspace / 6mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #88: REMOVAL OF THE COIL CENTERING CUP IN FACTORY COIL BUCKET REQUIRED FOR INSTALLATION.
  • Ships in multiple boxes

Features & Benefits

  • Bolt-in system fits in OE coil bucket location
  • FK Rod End bearings for extended longevity and minimal deflection
  • Ride height adjustable coilovers (4-5.5")
  • Increased wheel travel and ride quality over stock
  • Decreased body roll and improved on and off-road ride dynamics
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • Shocks are fully rebuildable and revalveable
  • Coilover conversion allows for addition of secondary shock
  • Corrosion resistant CAD plated coilover shock body with 7/8 shaft
  • Eibach coil springs guaranteed for life against sagging or breakage

System Components:

  • 195275 (QTY: 1) | 99-UP FSD 5" BLOCK KIT
  • 37601P (QTY: 1) | 99-UP 3-6" FSD REAR 2.5 VS IR PAIR
  • 61721 (QTY: 1) | 05-UP FSD 4WD 4" 2.5 VS RR BOLT IN CO CONVERSION KIT
  • 64000 (QTY: 1) | 05-07 FSD FRONT 4.5" BOX KIT
  • 64035 (QTY: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
  • 64040 (QTY: 1) | 05-10 FSD RADIUS ARM DROP KIT
  • 37002 (QTY: 1) | 99-10 FSD REAR 17" U-BOLT KIT

Installation Instructions & Docs

Compatibility List
YearMakeModelDrivePositionLift
2004FordF-250 Super Duty4WD4-5.5"
2003FordF-250 Super Duty4WD4-5.5"
2002FordF-250 Super Duty4WD4-5.5"
2001FordF-250 Super Duty4WD4-5.5"
2000FordF-250 Super Duty4WD4-5.5"
1999FordF-250 Super Duty4WD4-5.5"

Product Details
