Icon

0.5-2.25" AAC Front Leveling Kit w/.5-2.25" lift

2017-2020 Ford Raptor
$354.95 $372.70

Starting at $33/mo or 0% APR with . See if you qualify

In Stock

Estimated Delivery in 3-7 business days

IVD6130B
IVD6130B
Icon 0.5-2.25" AAC Front Leveling Kit for 2017-2020 Ford Raptor w/.5-2.25" lift
Icon

0.5-2.25" AAC Front Leveling Kit w/.5-2.25" lift

2017-2020 Ford Raptor
$354.95 $372.70

Starting at $33/mo or 0% APR with . See if you qualify

In Stock

Estimated Delivery in 3-7 business days

CHECK IF THIS FITS YOUR VEHICLE
Select Your Vehicle
Authorized dealer
Free shipping within the lower 48 United States
Brand new parts with warranty coverage
Free 30-day return and exchange on qualifying orders
Got Questions?
Our experts are here to help!
Chat now Request a call back
Part Numbers & Details
Specifications
Part NumberItemQuantity
IVD6130BLeveling Kit1

Overview

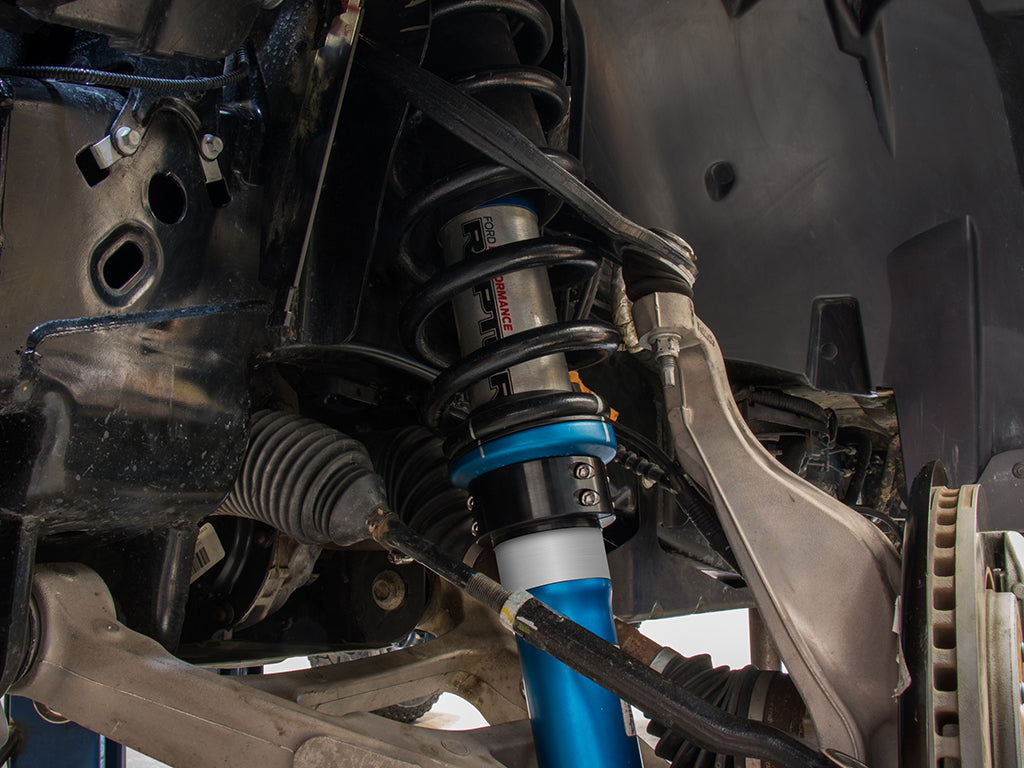

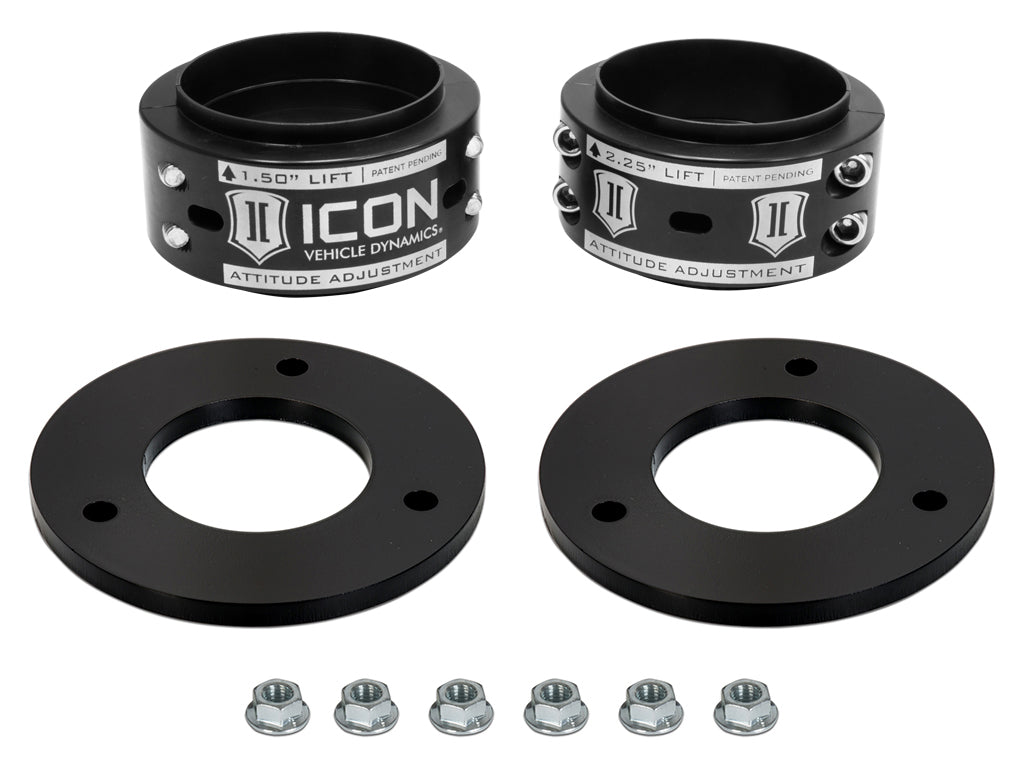

The ICON Attitude Adjustment Collar (AAC) is an industry first, patent pending multi-height coil spring collar that works in conjunction with a top load shim that can be configured in five unique ways to yield .5" to 2.25" of front lift height over stock. Taking the front end dimensions of the "Gen 2" Raptor into account, the collar and shim design of this leveling system achieves this range of lift height while keeping the OE shock in the ride zone, maintaining factory ride quality. Other options on the market achieve lift height solely through coil preload, which places the shock in the rebound zone at ride height and drastically impacts ride quality and performance. Installation of this leveling system requires no disassembly of the shock, making it a simple and straightforward process as opposed to other options currently available. CNC machined 6061 billet aluminum construction and a black anodized finish mean this product can stand up to the test of time in the harshest on and off-road conditions. Backed by ICON's limited lifetime warranty, the ICON Vehicle Dynamics Attitude Adjustment Collar is the best leveling solution on the market for the 2017-UP Ford Raptor.

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 5" BS / 6mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Features & Benefits

  • Features mounting holes for 2019-UP specific wire harnesses
  • Multi-height design can yield 0.5" to 2.25" of front lift height
  • Does not require disassembly of the shock for installation
  • CNC machined 6061 billet aluminum construction
  • Black anodized finish for corrosion resistance and great looks
  • Keeps OE shock in the ride zone, maintaining factory ride quality
  • Lifetime guarantee against component breakage or manufacturer defect

Installation Instructions & Docs

Compatibility List
YearMakeModelDrivePositionLift
2020FordRaptor.5-2.25"
2019FordRaptor.5-2.25"
2018FordRaptor.5-2.25"
2017FordRaptor.5-2.25"

Product Details

Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!

Part Numbers & Details

View full product specifications

Close specs
Part Numbers & Details
Specifications
Part NumberItemQuantity
IVD6130BLeveling Kit1

Overview

The ICON Attitude Adjustment Collar (AAC) is an industry first, patent pending multi-height coil spring collar that works in conjunction with a top load shim that can be configured in five unique ways to yield .5" to 2.25" of front lift height over stock. Taking the front end dimensions of the "Gen 2" Raptor into account, the collar and shim design of this leveling system achieves this range of lift height while keeping the OE shock in the ride zone, maintaining factory ride quality. Other options on the market achieve lift height solely through coil preload, which places the shock in the rebound zone at ride height and drastically impacts ride quality and performance. Installation of this leveling system requires no disassembly of the shock, making it a simple and straightforward process as opposed to other options currently available. CNC machined 6061 billet aluminum construction and a black anodized finish mean this product can stand up to the test of time in the harshest on and off-road conditions. Backed by ICON's limited lifetime warranty, the ICON Vehicle Dynamics Attitude Adjustment Collar is the best leveling solution on the market for the 2017-UP Ford Raptor.

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 5" BS / 6mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Features & Benefits

  • Features mounting holes for 2019-UP specific wire harnesses
  • Multi-height design can yield 0.5" to 2.25" of front lift height
  • Does not require disassembly of the shock for installation
  • CNC machined 6061 billet aluminum construction
  • Black anodized finish for corrosion resistance and great looks
  • Keeps OE shock in the ride zone, maintaining factory ride quality
  • Lifetime guarantee against component breakage or manufacturer defect

Installation Instructions & Docs

Compatibility List
YearMakeModelDrivePositionLift
2020FordRaptor.5-2.25"
2019FordRaptor.5-2.25"
2018FordRaptor.5-2.25"
2017FordRaptor.5-2.25"
