0-2" Suspension System - Stage 1 Kit
Estimated Delivery in 3-7 business days
0-2" Suspension System - Stage 1 Kit
Estimated Delivery in 3-7 business days
Part Number | Lift/Lowered | Position | Item | Quantity |
---|---|---|---|---|
K78351 | 0-2" Lift | Front and Rear | 0-2" Suspension System - Stage 1 | 1 |
Overview:
Tougher, stronger and more capable - That'he motto that General Motors used when debuting the all-new fleet of heavy-duty trucks in 2020. ICON Vehicle Dynamics stayed true to GM engineers'ought process with the development of our suspension systems for the 2020-UP GM HD 2500/3500 trucks. Using ICON'olistic engineering philosophy, our R&D team went above and beyond to develop several stages of complete suspension systems that provide varying levels of adjustability, capability, and overall vehicle performance. ICON's Stage 1 system is comprised of V.S. 2.5 Aluminum Series internal reservoir front shocks, 2.0 Aluminum Series internal reservoir rear shocks, and billet aluminum Delta Joint upper control arms. The ICON vehicle specific tuned 2.5" front shocks are the key to attaining optimum ride quality and getting that desired comfort with the 3/4 & 1-ton working capability. Additionally, ICON billet upper control arms add strength, durability, additional caster and camber adjustment, and when paired with extended travel shocks increases wheel travel 2" over the OEM configuration. While driving the construction site or trails to your favorite dirt bike location, ICON wants you to get there in comfort just like your drive to work.
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Highlights:
- 0-2" Adjustable lift height over stock
- Vehicle specific tuned 2.5" front and 2.0" rear shocks for superior shock damping and control
- Improved ride quality over stock with no change in towing capacity
- Billet aluminum Delta Joint UCAs allow for additional caster/camber adjustment
- Wheel travel increase of 2" over stock
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant anodized aluminum shock bodies
Fitment Notes:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.5" Backspace / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.5" Backspace / 12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE5: NOT SOLD SEPARATELY, ONLY SOLD IN COMPLETE KIT FORM AS LISTED
- 26.13" IS MAX MEASUREMENT FROM FENDER TO HUB, EXCEEDING THE MAXIMUM LIFT HEIGHT OF 26.13" CAN LEAD TO COMPONENT FAILURE NOT COVERED BY ICON WARRANTY
- The additional down travel provided by an ICON Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. ICON Vehicle Dynamics 2020-UP GM HD Splash Guard Kit, part number 77202 recommended.
Parts Contained:

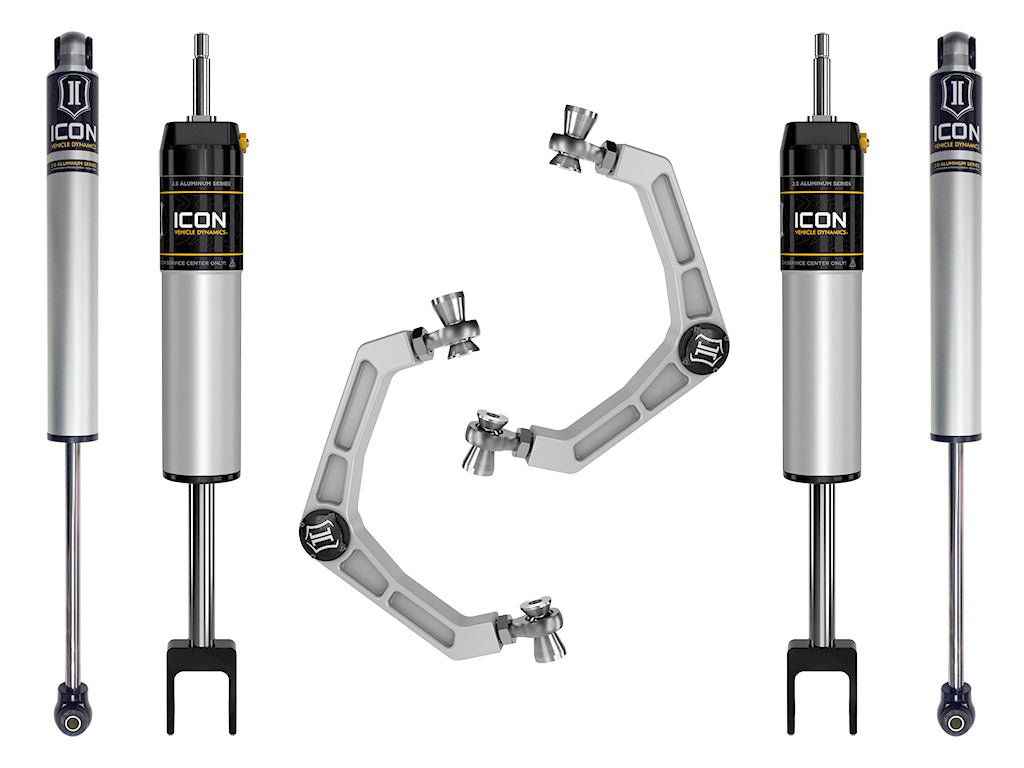

- 78732 (QTY: 1) | 20-UP GM HD 0-2" IR SHOCK SYS W/ BILLET UCA
- 76529 (QTY: 2) | 01-UP GM HD 0-1" REAR 2.0 VS IR
Year | Make | Model | Drive | Position | Lift |
2024 | Chevrolet | Silverado 2500 HD | 4WD | 0-2" | |
2023 | Chevrolet | Silverado 2500 HD | 4WD | 0-2" | |
2022 | Chevrolet | Silverado 2500 HD | 4WD | 0-2" | |
2021 | Chevrolet | Silverado 2500 HD | 4WD | 0-2" | |
2020 | Chevrolet | Silverado 2500 HD | 4WD | 0-2" |
ICON VEHICLE DYNAMICS LIMITED LIFETIME WARRANTY
If a shock is inspected and it has been determined the shock failed due to neglect, damage caused by improper installation or any other reason besides "normal wear and tear", the owner of said shock is responsible for all service costs. ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions.
ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada.
ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered. ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
SHOCK ABSORBER WARRANTY
ICON Vehicle Dynamics warrants to the original retail purchaser who owns the vehicle on which the product was originally installed. ICON Vehicle Dynamics does not warrant the product for finish, alterations, modifications and/or installation contrary to ICON Vehicle Dynamics instructions. ICON Vehicle Dynamics products are not designed, nor are they intended to be installed on vehicles used in race applications, for racing purposes or for similar activities. (A "race" is defined as any contest between two or more vehicles, or a contest of one or more vehicles against the clock, whether or not such contest is for a prize).
This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America and Canada. ICON Vehicle Dynamics' obligation under this warranty is limited to the repair or replacement, at ICON Vehicle Dynamics' discretion, of the defective product. Any and all costs of removal, installation or re-installation, freight charges and incidental or consequential damages are expressly excluded from this warranty. Items that are subject to wear are not considered defective when worn and are not covered.
ICON Vehicle Dynamics components must be installed as a complete kit as shown in our current application guide. Any substitutions or exemptions of required components will immediately void the warranty. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been improperly installed, modified or customized subject to accident, negligence, abuse or misuse.
