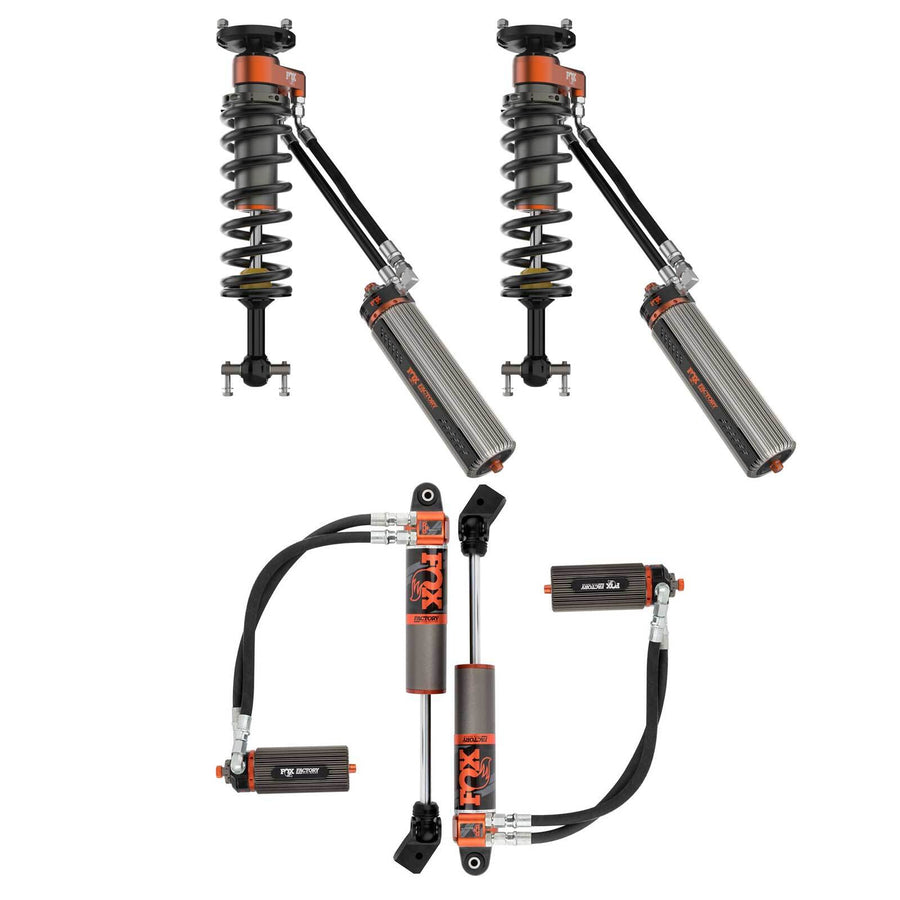

3.0 Factory Race Series Adjustable Coilover w/ Reservoir + Rear Shocks Set w/3" lift
Starting at $450/mo or 0% APR with Affirm. See if you qualify
Estimated Delivery in 3-7 business days



3.0 Factory Race Series Adjustable Coilover w/ Reservoir + Rear Shocks Set w/3" lift
Starting at $450/mo or 0% APR with Affirm. See if you qualify
Estimated Delivery in 3-7 business days
Part Number | Lift/Lowered | Position | Item | Quantity |
---|---|---|---|---|
883-26-105 | 2-3" Lift | Rear | Shock Absorber | 1 |
883-06-175 | 3.0" Lift | Front | Strut & Spring | 1 |
FOX Factory Race Series 3.0 Internal Bypass shocks for your truck delivesr position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.A Recirculating Reservoir Bridge enables continuous exchange of shock fluid between the finned external reservoir and body using checked ports, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies. The DSC adjuster allows you to dial in your 1500 for load, environment, and driving style.FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement.
Year | Make | Model | Drive | Position | Lift |
2024 | Chevrolet | Silverado 1500 | RWD, 4WD | Front & Rear | 3.0" Front / 2-3" Rear |
2023 | Chevrolet | Silverado 1500 | RWD, 4WD | Front & Rear | 3.0" Front / 2-3" Rear |
2022 | Chevrolet | Silverado 1500 | RWD, 4WD | Front & Rear | 3.0" Front / 2-3" Rear |
2021 | Chevrolet | Silverado 1500 | RWD, 4WD | Front & Rear | 3.0" Front / 2-3" Rear |
2020 | Chevrolet | Silverado 1500 | RWD, 4WD | Front & Rear | 3.0" Front / 2-3" Rear |
2019 | Chevrolet | Silverado 1500 | RWD, 4WD | Front & Rear | 3.0" Front / 2-3" Rear |
Product Details
Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!
View full product specifications
View warranty coverage
Free shipping within the lower 48 United States
