B8 5112 Leveling Kit + Rear B8 5100 Shocks w/2" lift
Starting at $58/mo or 0% APR with Affirm. See if you qualify
Estimated Delivery in 3-7 business days
B8 5112 Leveling Kit + Rear B8 5100 Shocks w/2" lift
Starting at $58/mo or 0% APR with Affirm. See if you qualify
Estimated Delivery in 3-7 business days
Part Number | Lift/Lowered | Position | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Color | Finish | Boot Included | Internal Design |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
24-186025 | 0-1" Lift | Rear | Shock Absorber | 2 | 29.7" | 18.04" | 11.66" | EYELET | EYELET | No | Silver | Zinc Plated | Black Bellows | Monotube |
F4-SE5-C765-H0 | 2.0" Lift | Front | Leveling Kit | 1 | No | Silver | Dampers: Zinc Plated/Springs: Blue | Black Bellows | Monotube |

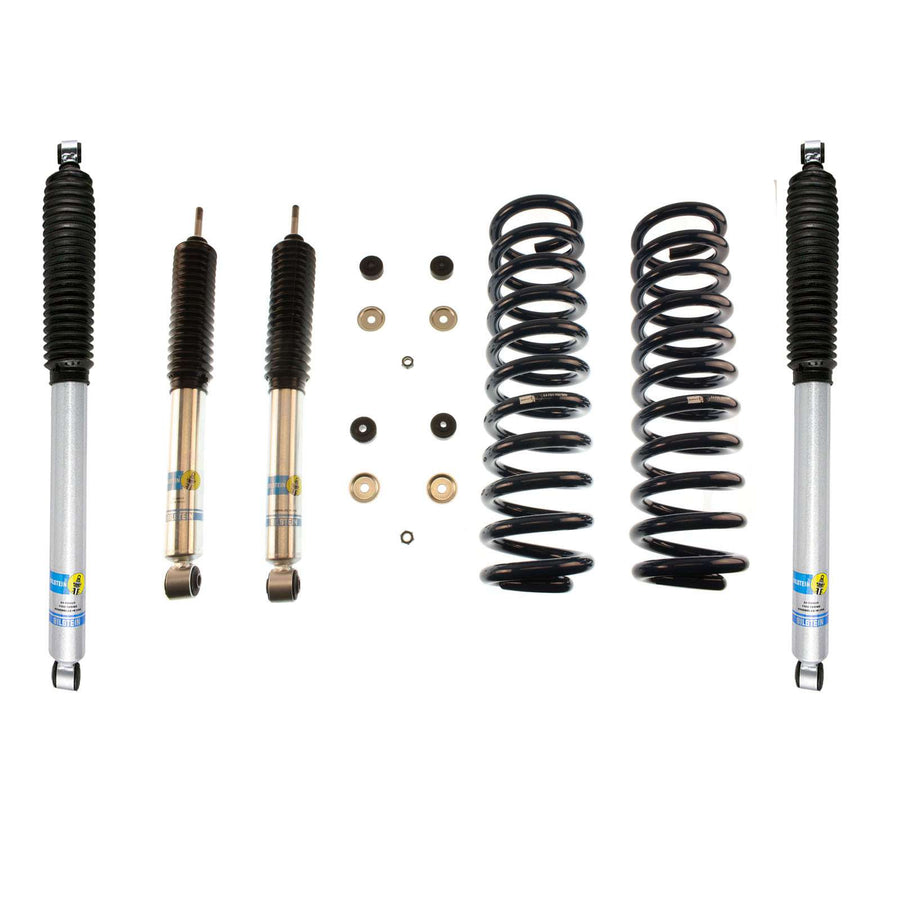

Bilstein B8 5112 suspension kit is a high performance leveling kit which provides more ground clearance, allows for larger tires, and increases wheel travel. The Bilstein B8 5112 suspension kit is for front applications and consists of two B8 5100 shock absorbers combined with two matched coil springs. This simple yet effective kit will bolt into the factory locations with no modifications. The Bilstein B8 5112 suspension kit provides a smooth and stable ride both on and off-road.
Bilstein 5100 shocks utilize a monotube design, with a 46mm digressive piston, to increase road handling characteristics both on and off-road. The single tube body allows for rapid heat transfer between the shock oil to the shock body, and then dissipated further to reduce shock fade.
Year | Make | Model | Drive | Position | Lift |
2021 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2020 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2019 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2018 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2017 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2016 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2015 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2014 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2013 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2012 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2011 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2010 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2009 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2008 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2007 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2006 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear | |
2005 | Ford | F-350 Super Duty | 4WD | 2.0" Front / 0-1" Rear |
Product Details
Whether you want to upgrade, add a reservoir, or find something more affordable, contact us with any questions!
