Bilstein's 6112 shocks are the go-fast go-big upgrade over the 5100 series. With a much thicker body and 60mm piston, the damping ability of the 6112 exceeds normal 2 inch shocks. More damping surface from the 60mm piston provides more consistency in similar terrains vs the 5100, Less work required with the 2.6" 6112 results in less harshness and more comfort. Another big advantage of the 6112 shock are the various height choices to account for different weight loads or tire clearance requirements. With Bilstein's build quality and reliability, these shocks do not need to be serviced as soon as similar 2.5" shock offerings.

This kit uses the 6112 front shocks and springs as the baseline, with interchangeable rear shocks according to lengths required. Rear lift options at 2" or greater will require an extended length rear shock to accommodate.

Bilstein Front 6112 - 47-309975

Bilstein Rear 5100 - 24-186728

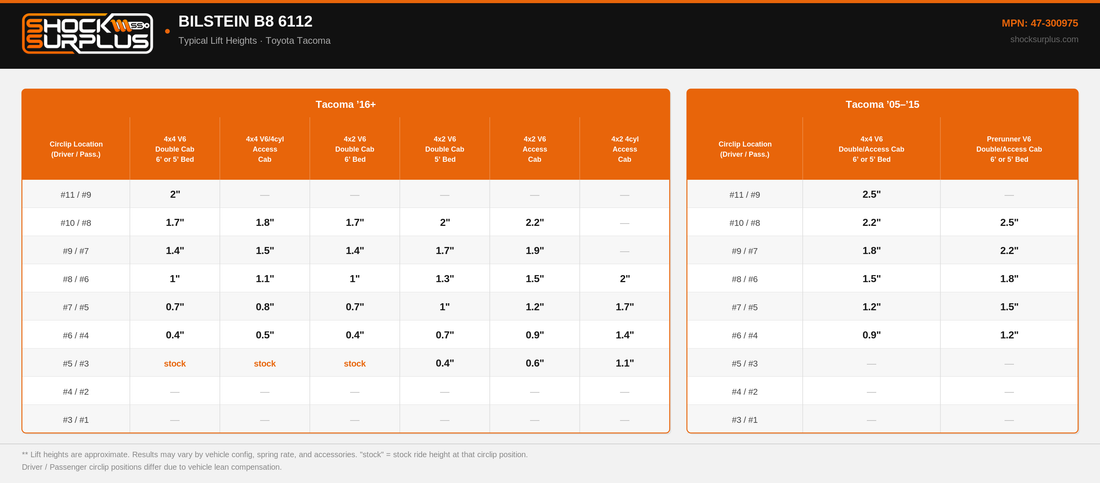

• Uses new included coil springs for the 6112 shocks, lift height is achieved through the numerous circlip rings on the shock; adjusted prior to install.
• 60mm piston means more damping surface volume, and having to do less work than a smaller (2in) shock or 46mm piston, one word - consistent.
• For more aggressive offroad use compared to the 5100 series

Fully Assembled Option - by selecting one of the performance coil spring and assembly options, Shock Surplus will fully assembled the front Bilstein 5100 struts, coil springs, and new top hats for easy installation. Lift heights are approximations and may not be exact for your specific setup.

Lean / Trim Spacers

These are either 1/2" or 1" spacers. 1/2" spacers do not require extended top bolts, but 1" will, which we do not supply.

Upper Control Arm Options

All available arms allow for more suspension articulation compared to stock arms on a lifted vehicle, and easier alignment, which is important when lifting the vehicle 3-3.5".

• SPC Light Racing - 25470
• Icon Vehicle Dynamics Tubular Delta Joint - 58450

• Icon Vehicle Dynamics Billet Aluminum Delta Joint - 58550DJ

• ProComp Suspension Uniball - 57002B
• Camburg Uniball - 310078
• Bilstein Tublar Ball Joint - 51-304683

Rear Lift Options

There are many options to lift the rear of your Tacoma, with their own pros and cons. Traditionally we recommend a progressive add-a-leaf setup that both improves handling and height requirements with additional weight, without negatively affecting ride quality too much. Old Man Emu leaf packs come with the required Fitting Kit (FK29), Ubolts (OMEU53B), and Rear Spring Bushing Kit (OMESB108).

• Eibach Pro-Truck +1.5" Billet Aluminum Lift Block - LB81-82-007-01-02
• ProComp +1.0" Steel Cast Lift Block - 65151
• Icon Vehicle Dynamics 1.5" Progressive Add-a-Leaf - 51100
• Icon Vehicle Dynamics 2-.5" RXT Leaf System - 51101
• Old Man Emu Dakar 2-2.5" Leaf Pack (0lbs-GVW) - EL111R
• Old Man Emu Dakar 2-2.5" HD Leaf Pack (Constant 500-700lb load) - EL112R

Rear Shock Options

Bilstein 5125 and Bilstein 5165 options below will need to re-use factory mounting hardware, which must be removed from the existing shocks, to ensure proper fitment. Bilstein 5125 and 5165 are universal shocks, with the proper mounting, but require the correct hardware for fitment.

• Bilstein 5100 (default) - Good for 0-1.5" of lift
• Bilstein 5160 - Good for 0-1.5" of lift
• Bilstein 5125 - Good for 2-3" of lift
• Bilstein 5125 - Good for 3.5-5" of lift
• Bilstein 5165 Reservoir - Good for 2-3" of lift

Bilstein Warranty

Thyssenkrupp Bilstein of America warrants its gas pressure shock absorbers against defects in workmanship and materials for as long as you, the original purchaser, own your car.

If a shock, strut, or coil-over malfunctions and BILSTEIN determines it to be defective, we will either replace it or repair it, depending on the term of the warranty based on the assembly's model type.

BILSTEIN from the factory (original equipment), warranty claims must be directed to the vehicle manufacturer.

LIMITED LIFETIME WARRANTY

B4 OE Replacement / B6 / B6 Performance / B8 Performance Plus / B12 Series / B14 (PSS) / B16 (PSS9 & PSS10) / B6 4600 / B8 5100 / B8 5100 (Ride Height Adjustable) / B8 5112 / B8 6112

BILSTEIN warrants to the original retail purchaser that, for the life of each gas pressure shock, this product shall be free from defects in material and workmanship. Proof of purchase is required to process warranty. Please return product to the original place of purchase.

LIMITED 2 YEAR WARRANTY

B4 OE Replacement (Air) / Steering Racks

BILSTEIN warrants to the original retail purchaser that, for a period of two (2) years from the date of purchase, the B4 OE Replacement (Air) suspension and Steering Racks shall be free from defects in workmanship and/or material. Proof of purchase is required to process warranty. Please return product to the original place of purchase.

LIMITED 90 DAY WARRANTY

B8 5125 / B8 5150 / B8 5160 / B8 5165 / M 7100 Series / B8 8125 / M 9100 Series / M 9300 Series / BILSTEIN Clubsport® / MOTORSPORTS PRODUCT

BILSTEIN warrants to the original retail purchaser that, for a period of ninety (90) days from the date of purchase, this product shall be free from defects in material and workmanship. Any implied warranty of merchantability, fitness or fitness for particular purpose, except as may be prohibited by applicable law, is likewise limited in duration to ninety (90) days from the date of original retail purchase. Some States do not allow limitations on how long an implied warranty lasts so the above limitation may not apply to you.

This warranty is non-transferable and does not cover normal wear and tear or any other loss, liability or damage resulting from improper alteration, disassembly, handling, installation, service, repair or use of this product. Should this product fail as a result of a defect in materials or workmanship within the warranty period, contact BILSTEIN's Warranty Service Department by telephone at 1(800) 370-9522, or in writing at thyssenkrupp Bilstein of America 14102 Stowe Drive, Poway, California, 92064, for repair or replacement at Manufacturer's option. Do not return this motorsports product to the place of purchase. Proof of purchase is required to process warranty.

WARRANTY RESTRICTIONS

The limited warranties set forth above do not cover normal wear and tear and are non-transferable. The following are warranty exclusions:

Original equipment shock absorbers (vehicle manufacturer warranty) -Improper installation -Racing, driving competition or off-road use -Modified use or other than BILSTEIN recommended vehicles -Commercial vehicles -Bent or broken Rods showing abuse or abnormal wear

Surface finish, boot or mounting hardware such as, but not limited to, rubber bushings, as well as labor charges are not covered by any of the foregoing limited warranties. BILSTEIN's liability for a defective shock absorber is limited to replacement of shock with a new or reconditioned BILSTEIN shock absorber. Repair or replacement as provided by this warranty is customer's sole and exclusive remedy in the event of a product failure. Manufacturer shall not be liable for any incidental, consequential or other damages resulting from the disassembly, handling, installation, service, repair or use of this product. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

Note: Other exclusions may or may not apply in certain states or rare circumstances.
